EC-M11-BC-C4 – USER GUIDE

Programming  #

The NORVI EC-M11-BC-C4 has a mini USB port for serial connection with the SoC for programming. Any ESP32-supported programming IDE can be used to program the controller. Follow this guide to programming NORVI ESP32-based controllers with the Arduino IDE.

SoC: ESP32-WROOM32
Programming Port: USB UART

Wiring Thermocouple Input, and Solar. #

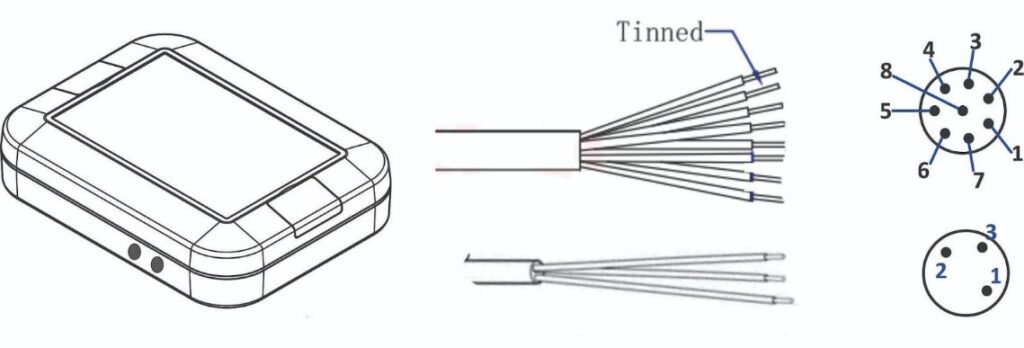

8-pin and 3-pin connectors and wire harness #

Pin Description #

Thermocouple Input #

Programming Thermocouple Inputs #

#include <SPI.h>
#include "Adafruit_MAX31855.h"
#define MAXDO  19
#define MAXCS   5
#define MAXCLK 18                // Initialize the Thermocouple
Adafruit_MAX31855 thermocouple(MAXCLK, MAXCS, MAXDO);

void setup() {
  Serial.begin(115200);
  Serial.println("MAX31855 test");             // Wait for MAX chip to stabilize
  delay(500);
  Serial.print("Initializing sensor...");
  if (!thermocouple.begin()) {
    Serial.println("ERROR.");
    while (1) delay(10);
  }
  Serial.println("DONE.");
}

void loop() {
  Serial.print("Internal Temp = ");
  Serial.println(thermocouple.readInternal());
  double c = thermocouple.readCelsius();
  if (isnan(c)) {
    Serial.println("Thermocouple fault(s) detected!");
    uint8_t e = thermocouple.readError();
    if (e & MAX31855_FAULT_OPEN) Serial.println("FAULT: Thermocouple is open - no connections.");
    if (e & MAX31855_FAULT_SHORT_GND) Serial.println("FAULT: Thermocouple is short-circuited to GND.");
    if (e & MAX31855_FAULT_SHORT_VCC) Serial.println("FAULT: Thermocouple is short-circuited to VCC.");
  } else {
    Serial.print("C = ");
    Serial.println(c);
  }
  //Serial.print("F = ");
  //Serial.println(thermocouple.readFahrenheit());
  Serial.println("");
  Serial.print("Analog Read : ");
  Serial.print(analogRead(36));
  Serial.println("");
  delay(1000);
}

Solar Input #

Battery Input #

Programming Solar and Battery #

#include <Adafruit_SSD1306.h>
#include <Adafruit_ADS1X15.h>
Adafruit_ADS1115 ads1;
int analog_value = 0;

void setup() {
  Serial.begin(115200);// put your setup code here, to run once:
  Wire.begin(16,17);
  if (!ads1.begin(0x49)) {
    Serial.println("Failed to initialize ADS 1 .");
    while (1);
  }
}

void loop() {
  int16_t adc0, adc1, adc2, adc3;
  adc0 = ads1.readADC_SingleEnded(0);
  adc1 = ads1.readADC_SingleEnded(1);
  adc2 = ads1.readADC_SingleEnded(2);
  adc3 = ads1.readADC_SingleEnded(3);
  Serial.println("-----------------------------------------------------------");
  Serial.print("AIN1: ");
  Serial.print(adc0);
  Serial.println("  ");
  Serial.print("AIN2: ");
  Serial.print(adc1);
  Serial.println("  ");
  Serial.print("SOLAR: ");
  Serial.print(adc2);
  Serial.println("  ");
  Serial.print("AIN4: ");
  Serial.print(adc3);
  Serial.println("  ");
}
