New · Industry 4.0 Platform

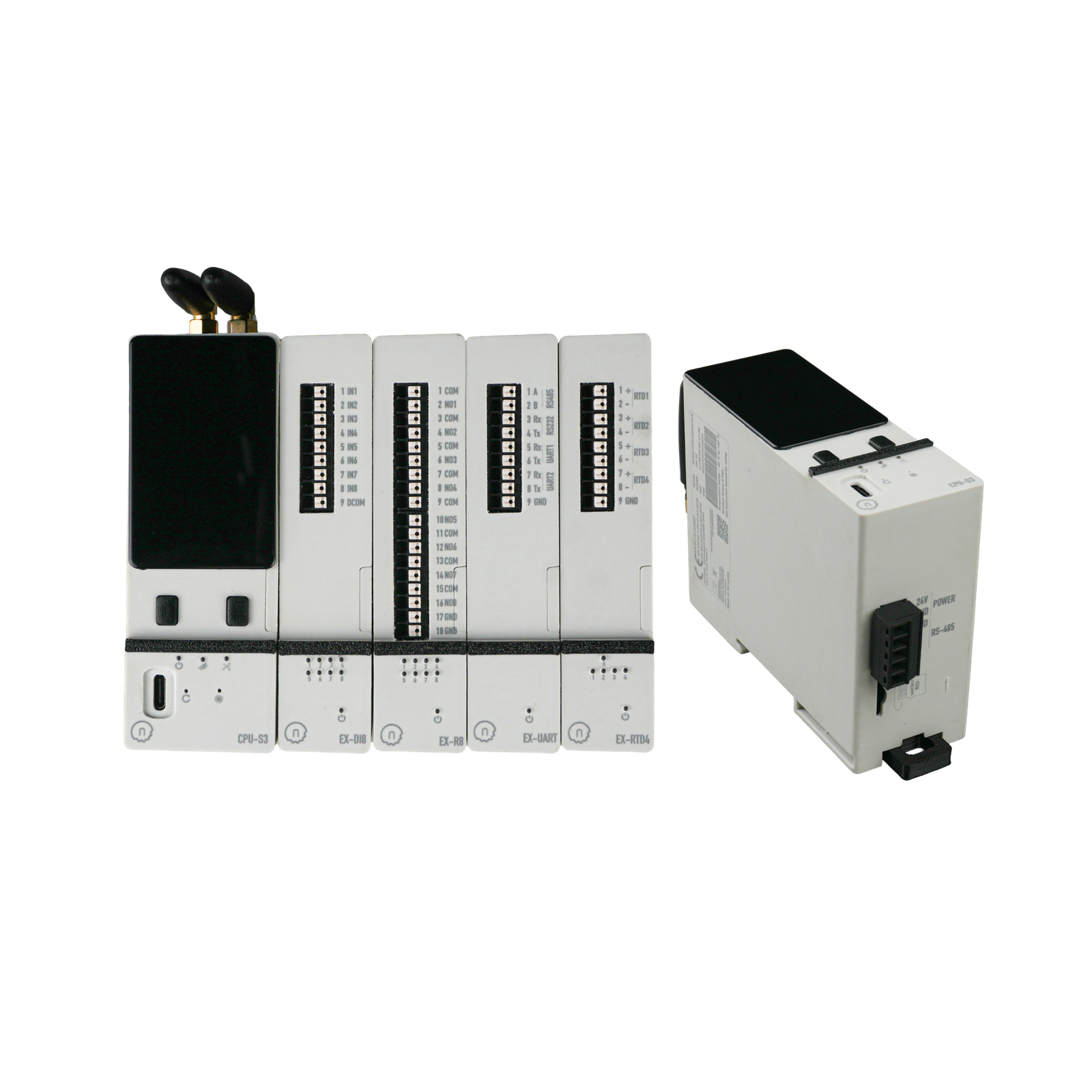

Modular Industrial IoT Controller

NORVI X — ESP32-S3 Based

A single, scalable platform that bridges legacy equipment with modern cloud systems. Built for machine builders and systems integrators who demand industrial-grade reliability, open-source freedom, and zero vendor lock-in.

ESP32-S3 Dual-Core

Up to 200 I/O Points

Wi-Fi · LTE · Ethernet

DIN-Rail TH35

IEC 61131-2

From $23.00 USD · CPU from $79.00

Order Now Documentation Certification

200 Max I/O Points

3 CPU Variants

14+ Expansion Modules

24V Industrial Rated

200 Max I/O Points

14+ Expansion Modules

OTA Firmware Updates

Connectivity Wi-Fi 802.11 b/g/n Bluetooth 5.0 BLE Ethernet RJ45 4G LTE Optional RS-485 Modbus RTU Modbus TCP MQTT / HTTP OTA Updates

Core Capabilities

Built Different.
Performs Better.

Everything a machine builder needs — modular I/O, native cloud connectivity, and an open-source development environment, all in a single DIN-rail controller.

F-01

ESP32-S3 Dual-Core @ 160 MHz

Dual-core 32-bit processor with 520 KB SRAM and 16 MB Flash. Native Wi-Fi and Bluetooth 5.0 BLE built-in, with optional 4G LTE via SIMCOM or Quectel modem modules.

F-02

Up to 200 I/O Points

Scale from minimal to 200 digital, analog, relay, and transistor I/O points via hot-swappable I²C expansion modules — no rewiring, no panel redesign, no downtime.

F-03

Built-in RS-485 & Ethernet

Native RS-485 Modbus RTU and Ethernet Modbus TCP for seamless integration with legacy PLCs, VFDs, energy meters, and SCADA systems — zero additional hardware needed.

F-04

TFT Touchscreen Display

Integrated TFT SPI display with capacitive touch for on-device configuration and real-time monitoring. No external HMI required — view process data directly on the controller.

F-05

DS3231 Precision RTC

Hardware real-time clock maintains accurate timestamps across power outages — critical for event logging, scheduled tasks, and time-stamped data in SCADA applications.

F-06

Industrial-Grade Security

TLS 1.2 encryption, certificate-based authentication, firmware signature verification, and optical isolation on all I/O channels. IEC 61131-2 and EN 61010-1 compliant.

F-07

Arduino IDE & ESP-IDF

Program with familiar tools — Arduino IDE, ESP-IDF, or MicroPython. Access thousands of open-source libraries, push OTA firmware updates, and pay zero licensing fees.

F-08

Cloud-Native Integration

Native MQTT and HTTP support connects directly to AWS IoT, Azure IoT Hub, Google Cloud, and custom brokers. No gateway hardware required — push data straight from the controller.

F-09

DIN-Rail TH35 Mounting

Standard TH35 DIN-rail mount fits any industrial panel worldwide. Screw-terminal connections rated for 24 V DC supply, ESD-protected up to 4 kV contact / 8 kV air discharge.

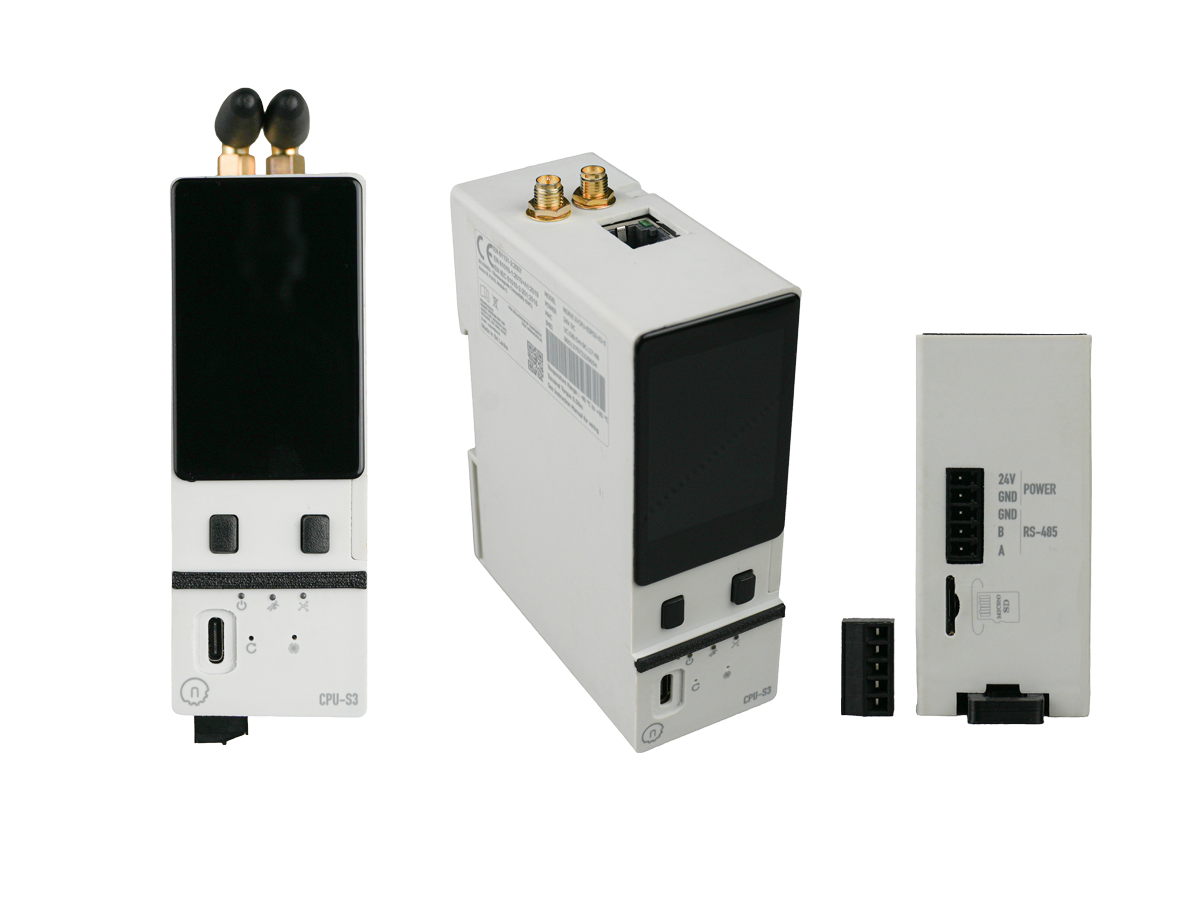

CPU Modules

Choose Your Processing Core

Three variants built on the same ESP32-S3 platform. All include Wi-Fi, Bluetooth, Ethernet, RS-485, and a TFT touchscreen display as standard.

Standard

CPU-ESPS3-X1

NORVI X1

Wi-Fi · Ethernet · Bluetooth

ESP32-S3-WROOM-1U-N16R2 dual-core
Wi-Fi 802.11 b/g/n + Bluetooth 5.0 BLE
Ethernet RJ45 built-in
RS-485 Modbus RTU built-in
TFT SPI touchscreen display
DS3231 hardware RTC
Supports up to 200 I/O points

NORVI X2

Wi-Fi · Ethernet · 2G / 4G LTE

ESP32-S3-WROOM-1U-N16R2 dual-core
SIMCOM A7672 — 2G / 4G IoT modem
Wi-Fi 802.11 b/g/n + Bluetooth 5.0 BLE
Ethernet RJ45 + RS-485 built-in
TFT SPI touchscreen display
DS3231 hardware RTC
Supports up to 200 I/O points

High-Speed 4G

CPU-ESPS3-X3

NORVI X3

Wi-Fi · Ethernet · High-Speed 4G

ESP32-S3-WROOM-1U-N16R2 dual-core
Quectel EC25 — high-speed 4G LTE
Wi-Fi 802.11 b/g/n + Bluetooth 5.0 BLE
Ethernet RJ45 + RS-485 built-in
TFT SPI touchscreen display
DS3231 hardware RTC
Supports up to 200 I/O points

Expansion Modules

Build Exactly What You Need

14+ expansion modules across digital, analog, relay, transistor, and sensor categories. Hot-swap any module without rewiring your panel.

Digital In

NORVI X-DI4

4× Digital Input (Fast)

High-speed optically isolated digital inputs for pulse counting, encoders, and proximity sensors.

4ch DIFastOpto

Digital In

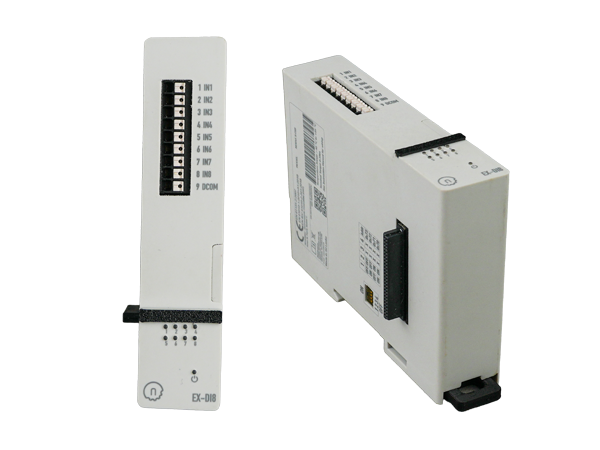

NORVI X-DI8

8× Digital Input

8-channel optically isolated digital input for switches, push-buttons, and discrete sensor monitoring.

8ch DIOpto

Digital In

NORVI X-DI16

16× Digital Input

High-density 16-channel isolated input for large-scale machine monitoring and fault detection systems.

16ch DIOpto

Relay Out

NORVI X-R4

4× Relay Output

4-channel relay for switching AC/DC loads — HVAC, motor starters, lighting, and contactor coils.

4ch RelayAC/DC

Relay Out

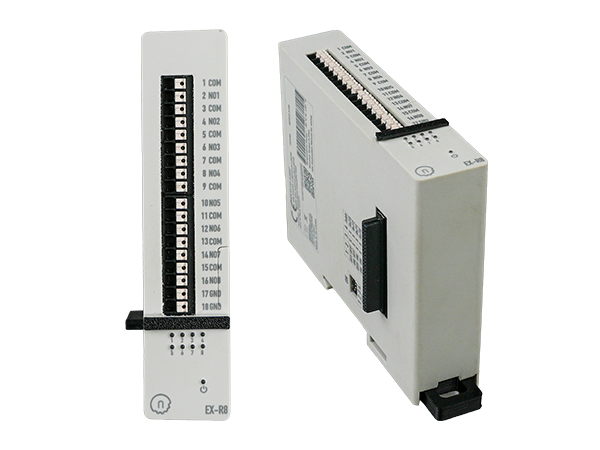

NORVI X-R8

8× Relay Output

8-channel relay output for high-density load switching in building management and factory panels.

8ch RelayAC/DC

Trans. Out

NORVI X-Q4

4× Transistor Output (Fast)

4 fast-switching NPN outputs for solenoids, steppers, indicators, and PLC-compatible digital control.

4ch DONPNFast

Trans. Out

NORVI X-Q8

8× Transistor Output

8-channel NPN transistor output for drives, actuators, and PLC-compatible digital control loops.

8ch DONPN

Trans. Out

NORVI X-Q16

16× Transistor Output

Maximum-density 16-channel NPN transistor output for high-channel count systems with compact footprint.

16ch DONPN

Analog In

NORVI X-AV4

4× Analog Input 0–10V

4-channel 0–10V input for sensors, transducers, and HMI signal loops with high-resolution ADC.

0–10V4ch

Analog In

NORVI X-AI4

4× Analog Input 4–20mA

Industry-standard current loop input, immune to cable EMI. Ideal for pressure, flow, and temperature transmitters.

4–20mA4ch

Analog Out

NORVI X-AQ4

4× Analog Output 0–10V / 4–20mA

Dual-mode analog output for VFDs, proportional valves, and actuators — both 0–10V and 4–20mA per channel.

0–10V4–20mA4ch AO

Sensor

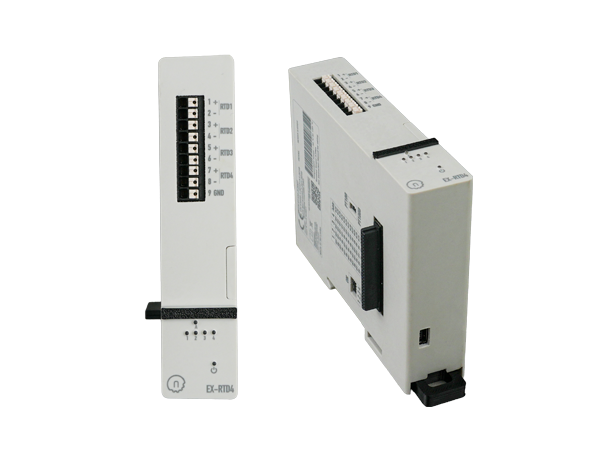

NORVI X-RTD4

4× RTD Sensor Input

4-channel Pt100/Pt1000 RTD interface for precision temperature measurement in process and HVAC applications.

RTD Pt1004ch

Comms

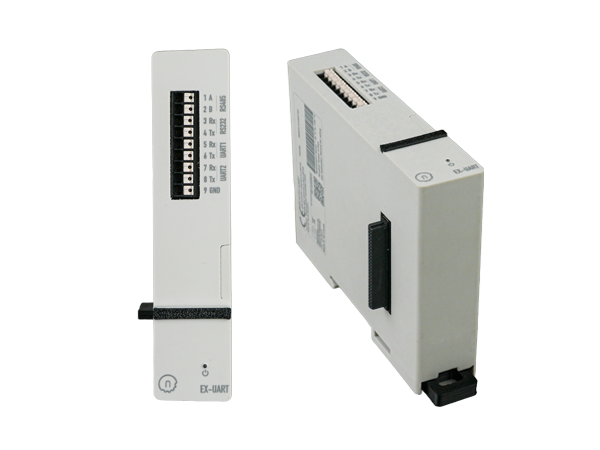

NORVI X-UART-IO

GPIO / UART / RS-232 Board

GPIO connection board with RS-485 ×2, RS-232 ×2, and UART ×4 for legacy serial device integration.

RS-485 ×2RS-232 ×2UART ×4

Coming Soon

NORVI X-T4

4× Thermocouple Input

4-channel thermocouple interface for high-temperature measurement in furnaces, ovens, and process loops.

Thermocouple4ch

Coming Soon

NORVI X-DA8

8 x AC Inputs

Info Comming Soon

AC Inputs8ch

Competitive Advantage

NORVI X vs Traditional PLCs

A direct comparison of what sets the NORVI X apart from conventional industrial controllers.

Feature	NORVI X	Traditional PLC
Initial Cost	✓ Lower — pay only for I/O you need	High — full system cost upfront
Programming Environment	✓ Arduino IDE — free & open-source	Proprietary software with licensing fees
IoT / Cloud Connectivity	✓ Built-in LTE, Wi-Fi, Ethernet, MQTT	Expensive communications modules required
I/O Expansion	✓ Hot-swappable I²C modules, up to 200 pts	Proprietary expansion chassis only
Firmware Updates	✓ OTA wireless — no site visits needed	Manual on-site reprogramming
Developer Community	✓ Massive Arduino & ESP32 ecosystem	Vendor-specific support only
Customisation	✓ Fully open — pre-programmed or custom	Limited to vendor feature set
Display / HMI	✓ Built-in TFT touchscreen display	Separate HMI panel required

Technical Specifications

Built for Industrial Demands

Every specification chosen for long-term reliability in demanding factory environments.

Processor

CoreDual-core 32-bit ESP32-S3 @ 160 MHz

Memory520 KB SRAM + 16 MB Flash

Max I/O200 points via expansion

Connectivity

WirelessWi-Fi 802.11 b/g/n + BT 5.0 BLE

WiredEthernet RJ45 + RS-485 Modbus

Optional4G LTE — SIMCOM A7672 or Quectel EC25

Power & Environment

Supply Voltage24 V DC nominal

Temp. Range−10 °C to +85 °C

ESD Protection4 kV contact / 8 kV air

Standards & Mounting

SafetyIEC 61131-2 compliant

QualityEN 61010-1 certified

MountingDIN-Rail TH35

Applications

Where NORVI X Works

Machine Control & Automation

Precise automation with scalable I/O for any production line, replacing traditional PLCs at lower cost.

Remote Monitoring & SCADA

Monitor sensors and actuators remotely over LTE or Wi-Fi, streaming data directly to any cloud platform or SCADA system.

IoT Gateways & Data Acquisition

Bridge legacy equipment to cloud platforms via native MQTT and Modbus support — no additional gateway hardware.

Building & Energy Management

Control HVAC, lighting, and energy loads with relay outputs while tracking consumption via analog inputs.

OEM & Custom Products

Flexible I/O and connectivity for tailored OEM platforms — without the cost and lead time of custom PCB design.

Start Building Today

Ready to Modernize
Your Control System?

From a single relay output to a 200-point I/O platform — the NORVI X scales with your application. Worldwide shipping from Colombo, Sri Lanka.

Order Now Book Free Consultation

Documentation → GitHub Sample Code → Technical Support →

FAQs

Common Questions

Can't find what you're looking for? Our team is available for a free technical consultation.

What is the NORVI X?+

The NORVI X is a DIN-rail mountable modular industrial IoT controller built on the ESP32-S3 processor. It combines Wi-Fi, Bluetooth, Ethernet, and optional 4G LTE with a hot-swappable I/O expansion system supporting up to 200 I/O points. It is designed for machine builders, systems integrators, and OEMs who need cloud-connected industrial automation without traditional PLC costs or vendor lock-in.

What is the difference between X1, X2, and X3?+

All three share the same ESP32-S3 core, TFT touchscreen, RS-485, and Ethernet as standard. The X1 ($79) is the Wi-Fi/BT/Ethernet base model. The X2 ($95) adds a SIMCOM A7672 modem for 2G/4G IoT-grade cellular. The X3 ($101) upgrades to a Quectel EC25 modem for high-speed user-grade 4G LTE — ideal for higher-bandwidth data applications.

How many expansion modules can I connect?+

The NORVI X supports enough expansion modules to reach 200 I/O points per controller. Modules are hot-swappable and use I²C address configuration to prevent conflicts. You can freely mix digital, analog, relay, transistor, sensor, and comms modules in the same system without any rewiring.

What communication protocols are supported?+

The NORVI X supports RS-485 Modbus RTU, Ethernet Modbus TCP, Wi-Fi, Bluetooth 5.0 BLE, and optional 4G LTE. For cloud integration it natively handles MQTT and HTTP — connecting directly to AWS IoT, Azure IoT Hub, Google Cloud, and custom brokers without any additional gateway hardware.

Is programming with the Arduino IDE supported?+

Yes. The NORVI X is fully compatible with the Arduino IDE, ESP-IDF, and MicroPython. Sample code is available on the NORVI GitHub repository. OTA over-the-air firmware updates are also supported, eliminating the need for manual reprogramming visits on deployed systems.

What are the environmental and safety ratings?+

The NORVI X is IEC 61131-2 compliant for functional safety and EN 61010-1 certified for electrical equipment quality. It operates from −10 °C to +85 °C with ESD protection up to 4 kV contact / 8 kV air discharge, and optical isolation on all I/O channels for EMI immunity in motor-drive environments.

Certification & Compliance

CE Certified Under RED Directive 2014/53/EU

The NORVI Controllers has been tested against the applicable harmonised standards for electrical safety, RF exposure, electromagnetic compatibility, and radio performance required under the EU Radio Equipment Directive.

Area	Applicable Standard(s)
Safety (Electrical)	EN IEC 62368-1:2020 + A11:2020
Outdoor Safety	EN 62368-1 Annex Y
RF Exposure / Health	EN IEC 62311:2020 EN 50566:2017 EN 62479:2010 EN 50663:2017 EN 50665
EMC (General/IT)	EN 55032 EN 55024 (or EN 55035)
EMC (Wireless)	ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Industrial EMC	ETSI EN 303 446-1 V1.2.1 (references EN 61000-6-2, EN 61000-6-4, and IT EMC standards)
Radio (Wi-Fi / BLE)	ETSI EN 300 328 V2.2.2 (Full + Spurious only) ETSI EN 300 440 V2.2.1 (Full + Spurious only) ETSI EN 301 893 V2.1.1 (Spurious only)
Environmental	Directive 2011/65/EU (RoHS)

Testing covers the product’s core module and integrated communication interfaces. Standards applicable to optional communication modules are assessed separately according to the specific module fitted to each product variant. Full test reports and the Declaration of Conformity are available on request through Technical Support.

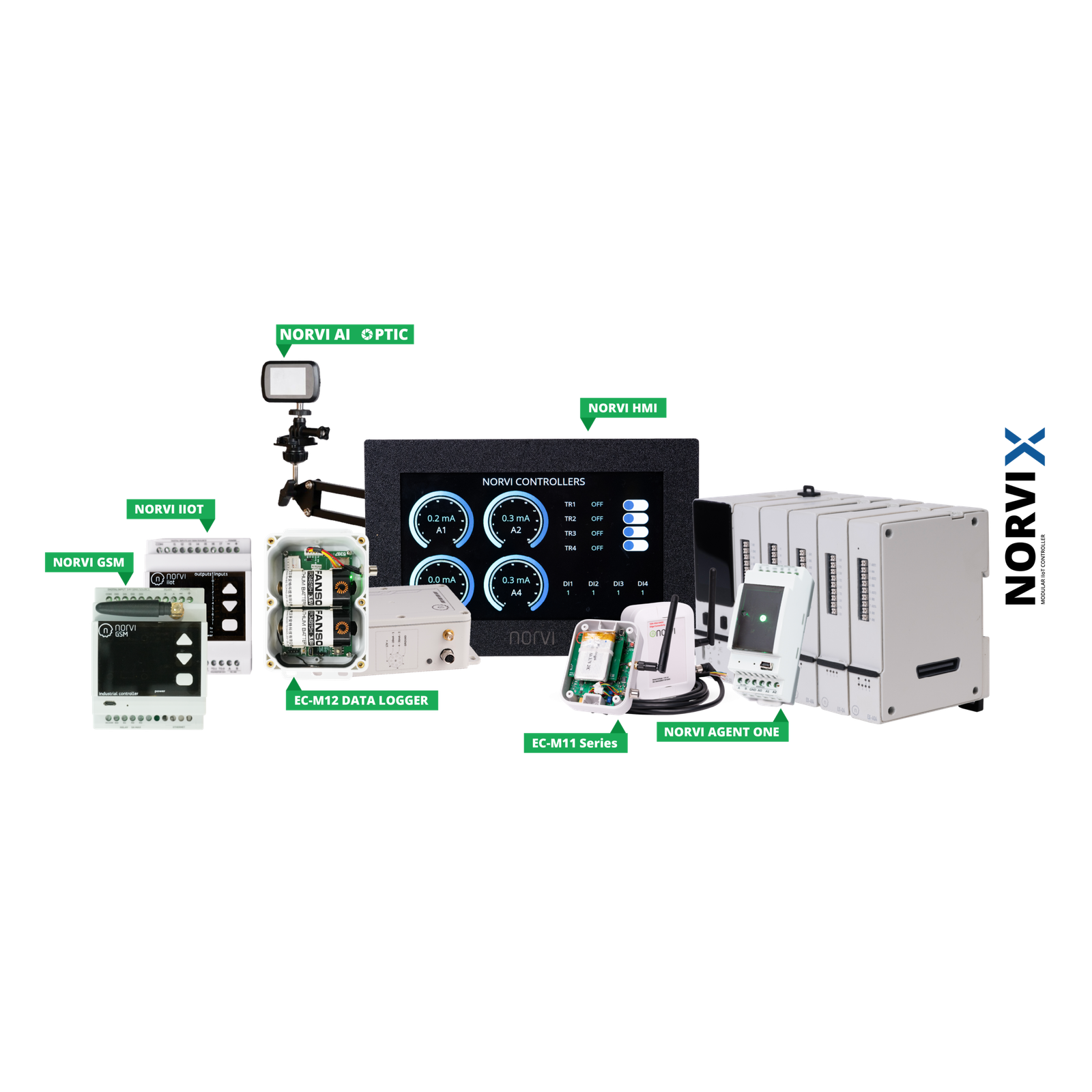

Not Sure Which Controller Fits?

See the Full
ESP32 PLC Lineup

NORVI X is one of seven ESP32 PLC series — from fixed-I/O panels to a 200-point modular platform. Compare specs, connectivity, and pricing across the entire range before you choose.

Explore ESP32 PLC Lineup

Order Quantity	Lead Time	Notes
Under 10 units	2–3 wks	Standard processing
10 – 100 units	4–5 wks	Mid-volume batch
Above 100 units	6+ wks	Contact us for slot
