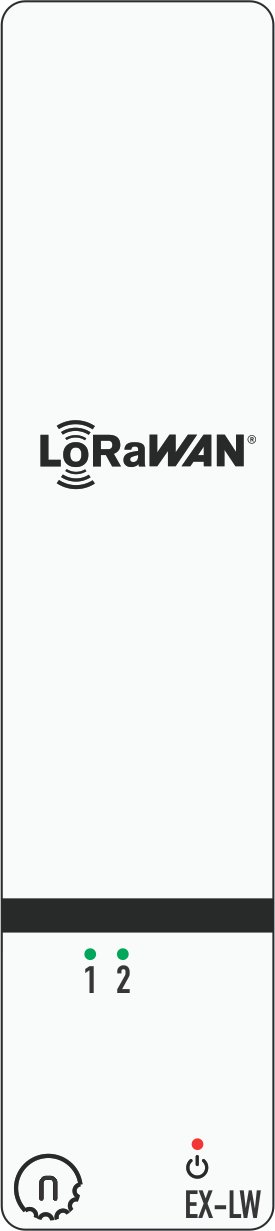

The NORVI X-LW is a LoRaWAN communication expansion module for the NORVI X industrial controller, featuring the RAK4630-9-SM-I LoRaWAN module with a Semtech SX1262 LoRa transceiver. It enables long-range, low-power wireless communication for connecting NORVI X controllers to LoRaWAN networks and remote monitoring systems.
Product Features #
- LoRaWAN Wireless Communication
- RAK4630 LoraWAN Communication
- Long-Range Wireless Connectivity
- Low-Power Wireless Communication
- Designed for NORVI X Industrial Controllers
- Suitable for Remote and Distributed Monitoring
- Industrial IoT Communication Support
Applications #
- Industrial wireless monitoring
- Remote sensor data transmission
- IoT and smart automation systems
- Remote equipment monitoring
- Long-range telemetry
- Environmental monitoring
- Distributed industrial control systems
- Low-power wireless data communication

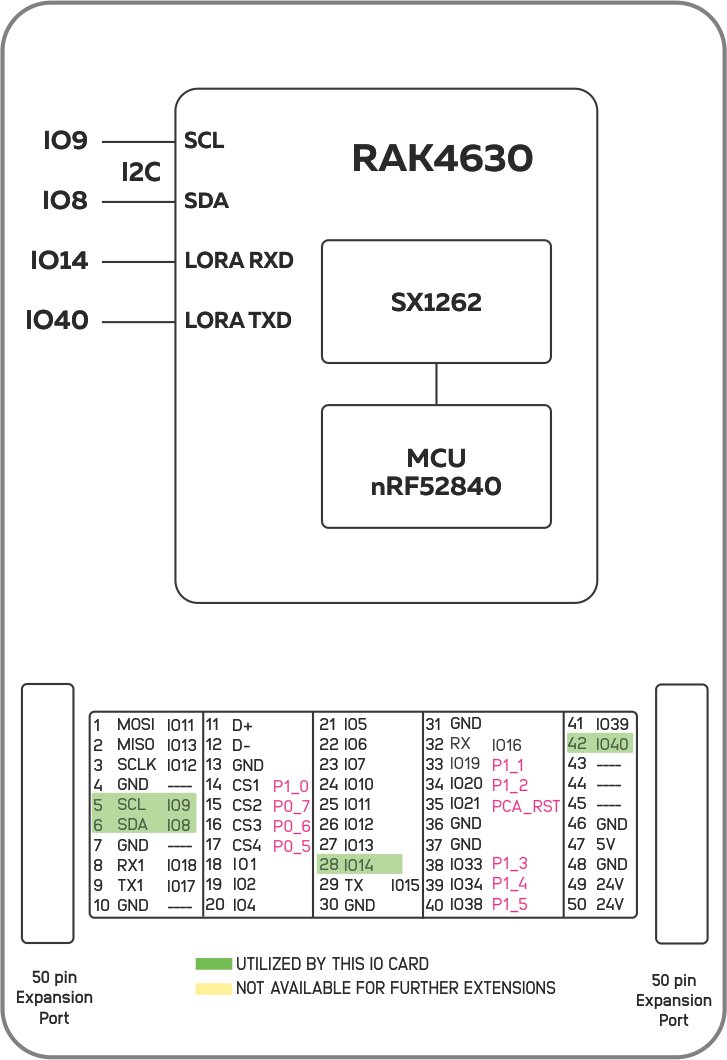

Product Block Diagram #
Main #
| Range of Product | NORVI X |
| Product type | Expansion Module for NORVI X Series |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU- Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
Complementary #
| Product Part Numbers | NORVI X-LW |

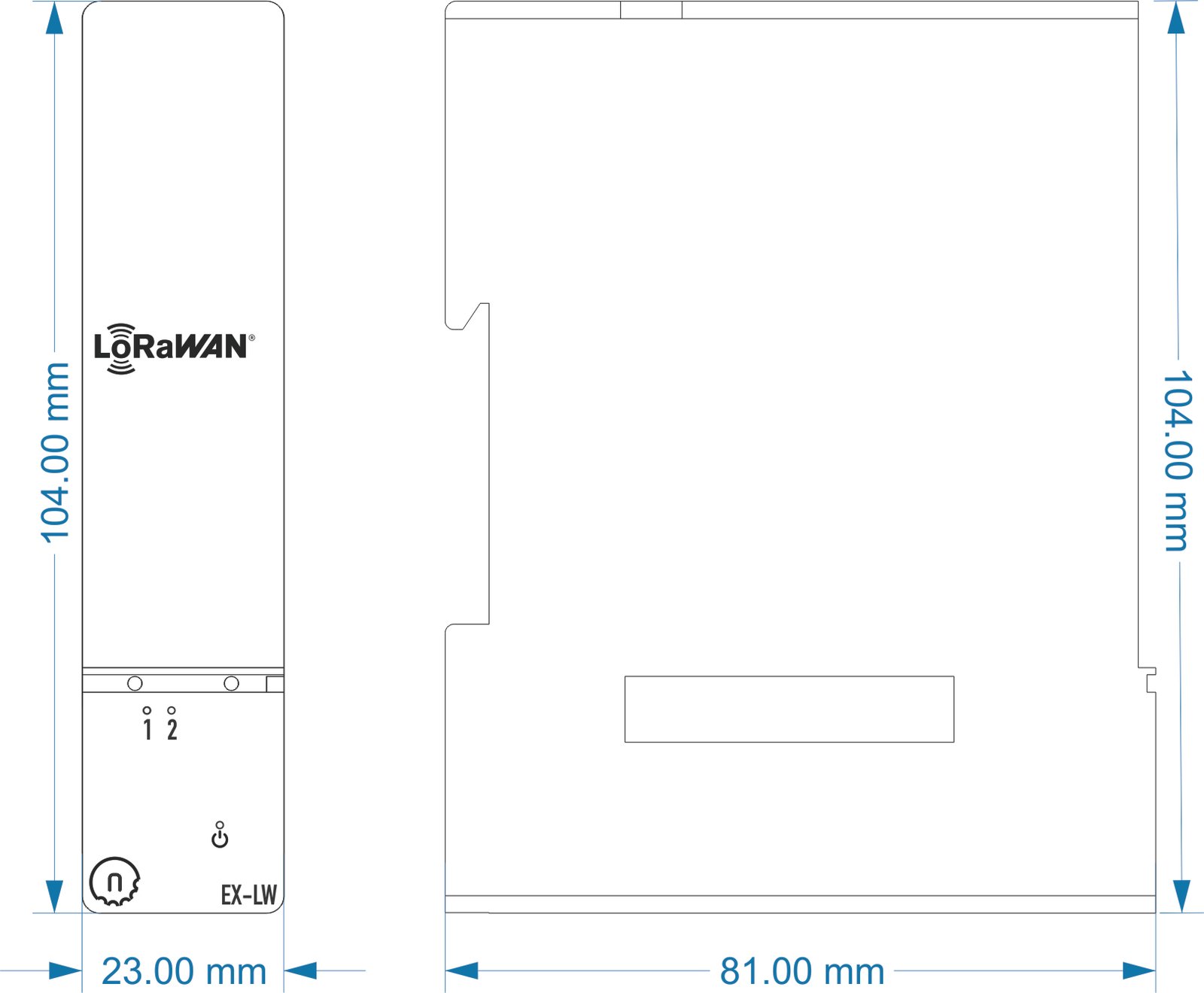

Mechanical Properties #
| Enclosure | NORVI X-N1 |
| Mounting / Installation Method | DIN RAIL |
| Terminal Type | Push-in terminal |
| Terminal Arrangement | Front |
| Length | 81.00 mm |
| Height | 104.00 mm |
| Width | 23.00 mm |
Environment #
| IP degree of protection | IP20 |
| Operating altitude | 0 – 2000 meters |
| Operating Temperature | – –40 … +85° C (-40…185 °F) |
| Storage altitude | 0 – 3000 meters |
| Shock resistance | 15 gn for 11ms |
| Resistance to electrostatic discharge | 4kV on contact 8kV on air |
| Resistance to electromagnetic fields | 10 V/m (80 MHz …… 1GHz) 3 V/m (1.4 MHz …… 2 GHz) 1 V/m (2 MHz …… 3 GHz) |
Electrical Characteristics #
Grid Powered Devices #
| Rated Supply Voltage (V) | 24V DC |
| Current Consumption (mA) | 40mA @ 24VDC |
Main Module Information #
| Parameter | RAK4630 |
|---|---|
| Module | RAK4630 WisBlock LoRaWAN + BLE |
| Main MCU | Nordic nRF52840 |
| LoRa Transceiver | Semtech SX1262 |
| Wireless Technologies | LoRa / LoRaWAN, Bluetooth 5.0 / BLE |
| LoRaWAN Version | 1.0.3 |
| LoRa Communication | LoRaWAN and LoRa P2P |
| Module Size | 15 × 23 × 3 mm |
| Supply Voltage | 2.0 – 3.6 V |
| Operating Temperature | −40 °C to +85 °C |
| Flash | 1 MB |
| RAM | 256 kB |
| Antenna | LoRa |
Expansion Port #
Utilized GPIO Connections are highlighted in Green. They cannot be used for any other purpose with this module connected.
| PIN INDEX | Purpose | GPIO | SOURCE |
|---|---|---|---|
| 1 | MOSI | IO11 | ESP32-S3 |
| 2 | MISO | IO13 | |
| 3 | SCLK | IO12 | |
| 4 | GND | —- | |
| 5 | SCL | IO9 | |
| 6 | SDA | IO8 | |
| 7 | GND | —- | |
| 8 | RX1 | IO18 | |
| 9 | TX1 | IO17 | |
| 10 | GND | —- | |
| 11 | D+ | —- | |
| 12 | D- | —- | |
| 13 | GND | —- | |
| 14 | CS1 | P1_0 | PCA9539 I2C Address 0x75 |
| 15 | CS2 | P0_7 | |
| 16 | CS3 | P0_6 | |
| 17 | CS4 | P0_5 | |
| 18 | IO1 | IO1 | ESP32-S3 |
| 19 | IO2 | IO2 | |
| 20 | IO4 | IO4 | |
| 21 | IO5 | IO5 | |
| 22 | IO6 | IO6 | |
| 23 | IO7 | IO7 | |
| 24 | IO10 | IO10 | |
| 25 | IO11 | IO35 | |
| 26 | IO12 | IO41 | |
| 27 | IO13 | IO37 | |
| 28 | IO14 | IO14 | |
| 29 | RS485_TX | IO15 | |
| 30 | GND | —- | |
| 31 | GND | —- | |
| 32 | RS485_RX | IO16 | |
| 33 | P1_1 | P1_1 | PCA9539 I2C Address 0x75 |
| 34 | P1_2 | P1_2 | |
| 35 | IO21 | IO21 | ESP32-S3 |
| 36 | GND | —- | |
| 37 | GND | —- | |
| 38 | P1_3 | P1_3 | PCA9539 I2C Address 0x75 |
| 39 | P1_4 | P1_4 | |
| 40 | P1_5 | P1_5 | |
| 41 | IO39 | IO39 | ESP32-S3 |
| 42 | IO40 | IO40 | |
| 43 | NC | —- | |
| 44 | NC | —- | |
| 45 | NC | —- | |
| 46 | GND | —- | |
| 47 | 5V | 5V | |
| 48 | GND | GND | |
| 49 | 24V | 24V | |
| 50 | 24V | 24V |
