NORVI X-DA8 – DATASHEET

The NORVI X-DA8 is an 8-channel digital input expansion module for the NORVI X Modular Controller. It provides protected 230 V AC digital inputs for industrial switches, sensors, and logic-level signals.

At its core, the module integrates a PCA9538 I²C port expander, allowing the NORVI X CPU to read input states efficiently via the internal expansion bus. With four selectable I²C addresses, up to four DA8 modules can be connected on the same bus, providing a total of 32 digital inputs per controller.

Designed for modular scalability and DIN-rail installation, the NORVI X-DA8 ensures reliable, noise-immune, and space-efficient input expansion for industrial and automation systems.

Product Features #

• 8 × Optically isolated 230 V AC digital inputs
• One common terminal for all eight inputs
• PCA9538 I²C port expander with 4 selectable addresses
• Built-in over-voltage and reverse-polarity protection
• Status LED indicators for each input channel
• Plug-and-play connection to NORVI X CPU module via expansion bus
• DIN-rail mountable industrial enclosure

Applications #

• Machine and process signal monitoring
• PLC and control system I/O expansion
• Sensor interfacing in industrial automation
• Low-frequency pulse and state detection

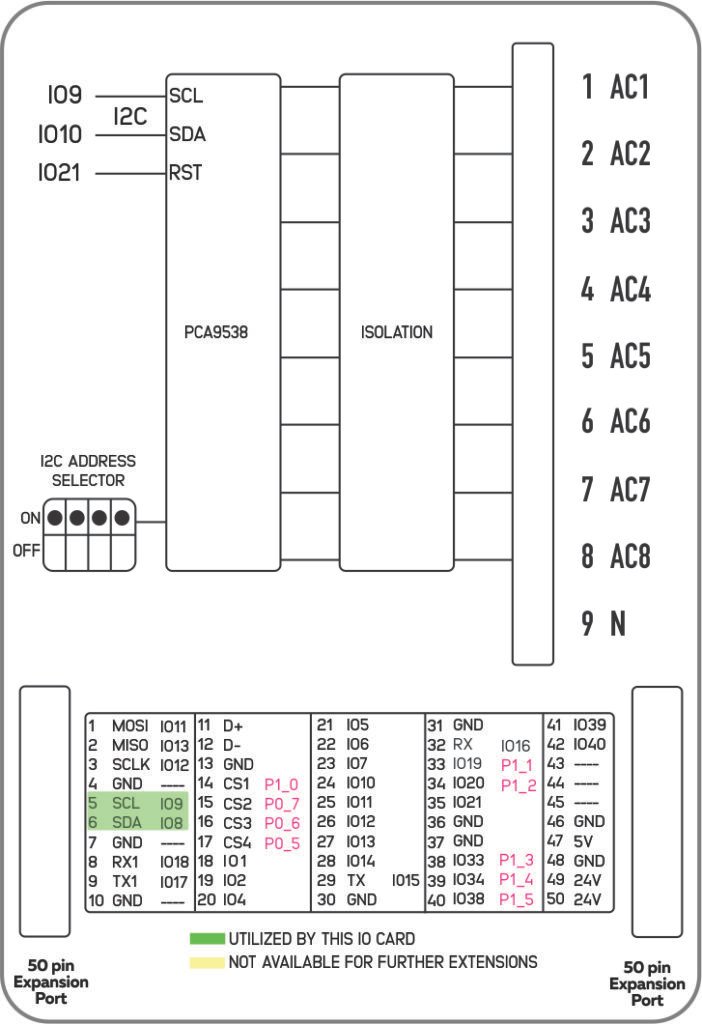

Product Block Diagram #

Main #

Complementary #

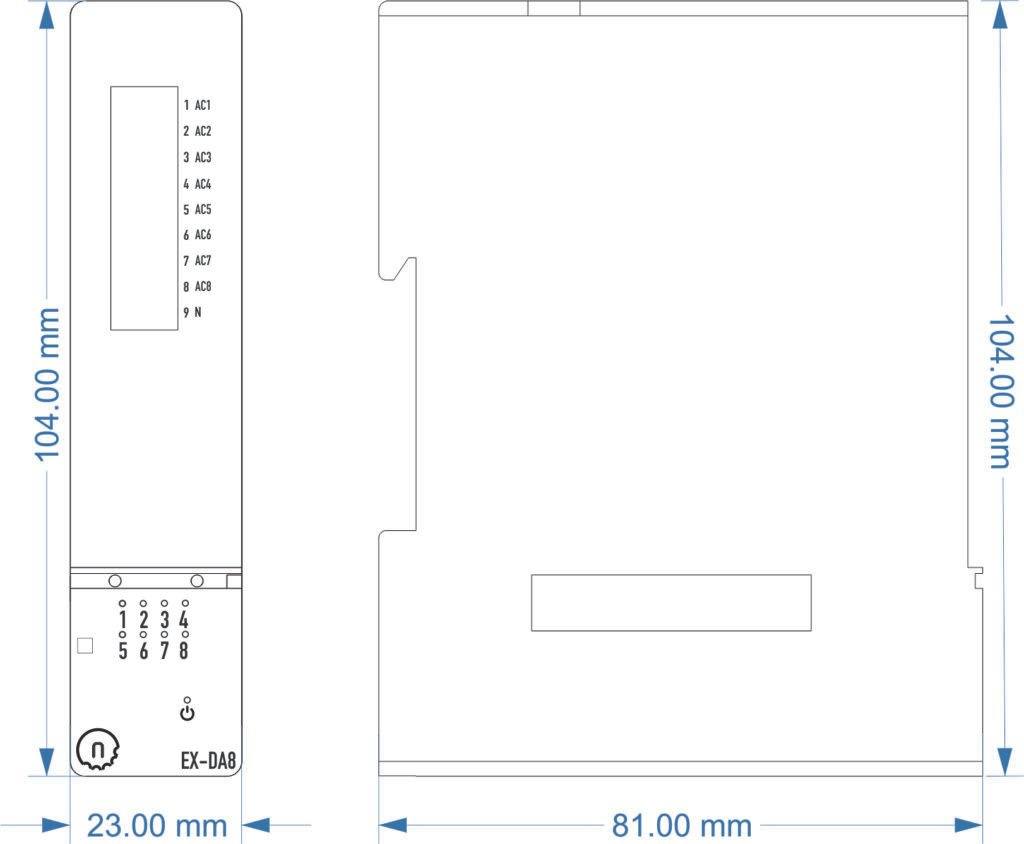

Mechanical Properties #

Environment #

Electrical Characteristics #

Grid Powered Devices #

I/O Specifications #

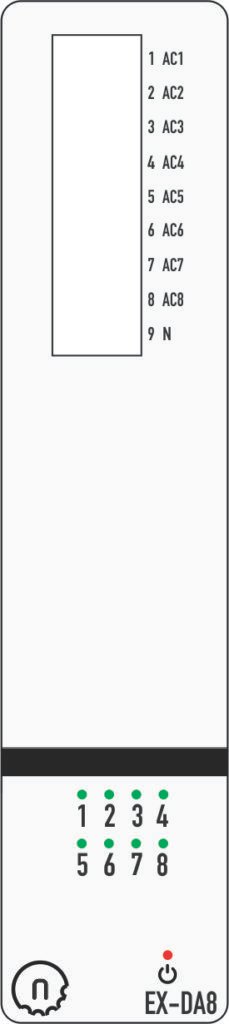

Terminal Configuration #

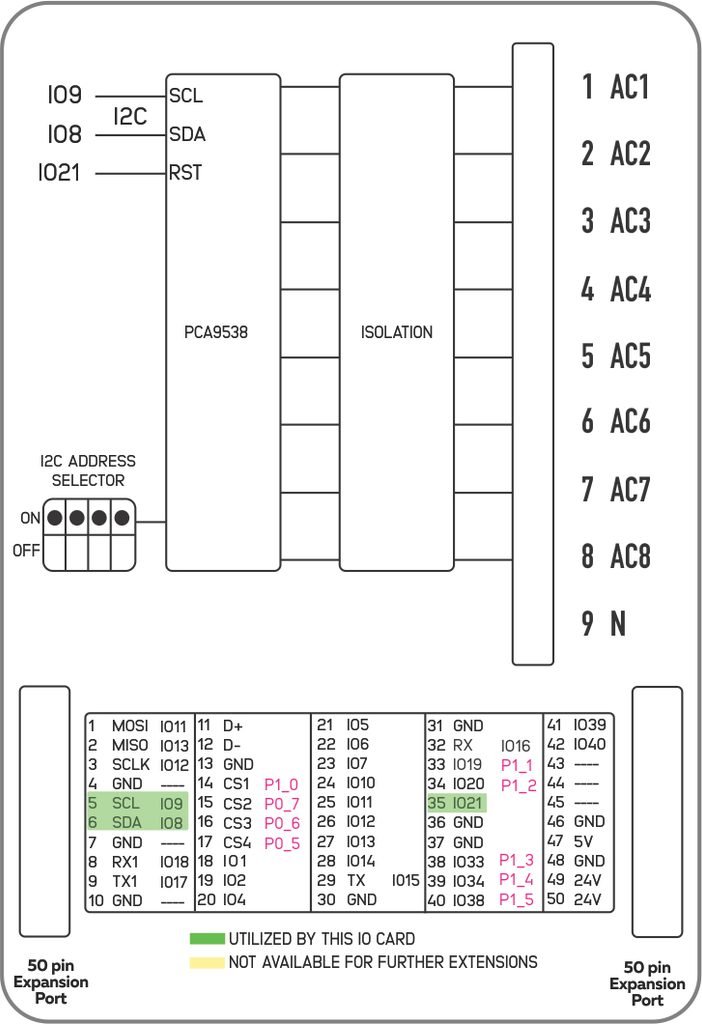

GPIO Utilization #

Expansion Port #

Utilized GPIO Connections are highlighted in Green. They cannot be used for any other purpose with this module connected.
