Program freely
Build your application on a full ESP32-S3 using Arduino or ESP-IDF, with no proprietary runtime required for your code.
INTRODUCING NORVI
XN
NORVI XN.
The industrial ESP32 controller that
stays reachable.
Your application runs on an ESP32-S3 you fully control. A separate OTA Manager handles cellular communication, firmware updates and live serial access, helping you diagnose and recover a field unit without visiting the site.
ESP32-S3
Cellular
OTA
Remote
serial
Ethernet + RS-485
Pricing and availability are subject to final launch confirmation. SIM options are available on request.
NORVI XN / PRODUCT VIEW
ESP32-S3 + OTA MANAGERINDUSTRIAL DIN-RAIL DESIGN
NORVI XN
PRODUCT VIEW
PRODUCT VIEW
INSIDE NORVI XN
XN architecture.
ESP32-S3 + cellular + an independent second brain
Two independent processors keep application logic separate from cellular communication, remote diagnostics and firmware updates.
NORVI XN / SYSTEM BLOCK DIAGRAMDUAL ESP32 DESIGN
RTCDS3231
EthernetW5500
Wi-Fi2.4 GHz antenna
Cellular4G LTE antenna
APPLICATION INTERFACES
USBLocal programming
MicroSDSPI storage
TFT touch2.0-inch display
Application ESP32-S3
Click either chip to exploreRuns the firmware and control logic you develop using Arduino or ESP-IDF. Connects to the display, Ethernet, RS-485 and expansion I/O. Includes 16 MB flash and 2 MB PSRAM.
MANAGEMENT & CONNECTIVITY
Flash / PSRAMOnboard memory
Cellular modemEC25 / A7672 options
GPIO expanderPCA9539APW
FIELD INTERFACES & POWER
Isolated RS-485Industrial field bus
Power & protection24 V DC supply
Expansion interfaceNORVI X I/O modules
Simplified functional architecture. Cellular module option depends on region and configuration.
Dual ESP32 designApplication + management
Cellular accessOTA Manager connectivity
Ethernet readyW5500 onboard
Display + touchLocal user interface
Industrial RS-485Wired field connectivity
Expandable I/ONORVI X modules
WHY TWO PROCESSORS?
Crashed firmware. Still reachable.
The independent OTA Manager is designed to keep remote diagnostics and firmware updates available even when the application stops responding, provided power and cellular connectivity remain available.
Diagnose and recover remotelyLive serial output + firmware delivery through NORVI Neural.
WHY CHOOSE XN
Focus on your application.
Not the connectivity stack.
Four practical reasons to choose XN for industrial devices deployed outside the development lab.
Separate update control
The independent OTA Manager handles firmware delivery and device access alongside the main application.
Debug from your desk
Read live serial output from a deployed unit and push an updated build without plugging in a USB cable on site.
Less modem code
Keep AT commands, modem state handling and cellular session management out of your application firmware.
HARDWARE OVERVIEW
Industrial hardware.
Clear specifications.
The essentials engineers need to evaluate NORVI XN for an OEM design, industrial controller or remote monitoring installation.
Processing and interfaces
- Processor
- ESP32-S3-WROOM-1U-N16R2
- Memory
- 16 MB flash, 512 KB SRAM, 2 MB PSRAM
- Wireless
- 2.4 GHz Wi-Fi, Bluetooth
- Wired networking
- Ethernet, isolated RS-485 (auto direction)
- Display
- 2.0-inch TFT touch display
Industrial and mechanical
- Cellular
- Via independent OTA Manager, EC25 / A7672
- Expansion
- 50-pin port, up to 200 I/O points
- Supply
- 24 V DC, 400 mA typical
- Operating range
- −10 to +85 °C, IP20
- Mounting / dimensions
- DIN rail, 81 × 104 × 37.5 mm
Designed with reference to EN 61131-2, EN 61010-1, EN IEC 61010-2-201 and the EMC Directive. CE testing is in progress. Final certification documents will be published after completion.
CELLULAR CONNECTIVITY
Choose the right modem for your deployment.
Cellular connectivity runs through the OTA Manager. Supported module options are listed below. Regional compatibility and SIM options should be confirmed before ordering.
MODULE OPTION 01Quectel EC25
MODULE OPTION 02SIMCom A7672
MODULAR I/O
One controller.
A system that grows.
XN uses the existing NORVI X plug-in module family. Add the input and output channels your project needs, without changing the controller architecture.
200maximum I/O points with expansion modules
Digital inputs
Industrial discrete sensors, contact states and pulse inputs.
Explore X-DI4Relays and outputs
Relay and transistor outputs for control and actuation.
View NORVI X rangeAnalog signals
4–20 mA and 0–10 V modules for process measurement.
Explore X-AI4Temperature and sensors
RTD, thermocouple and current-transformer options.
Browse module docsSOFTWARE WORKFLOW
Hardware meets NORVI Neural.
From writing the first firmware build to supporting devices already installed in the field, NORVI Neural is designed to bring those workflows together.
FEATURED WORKFLOW

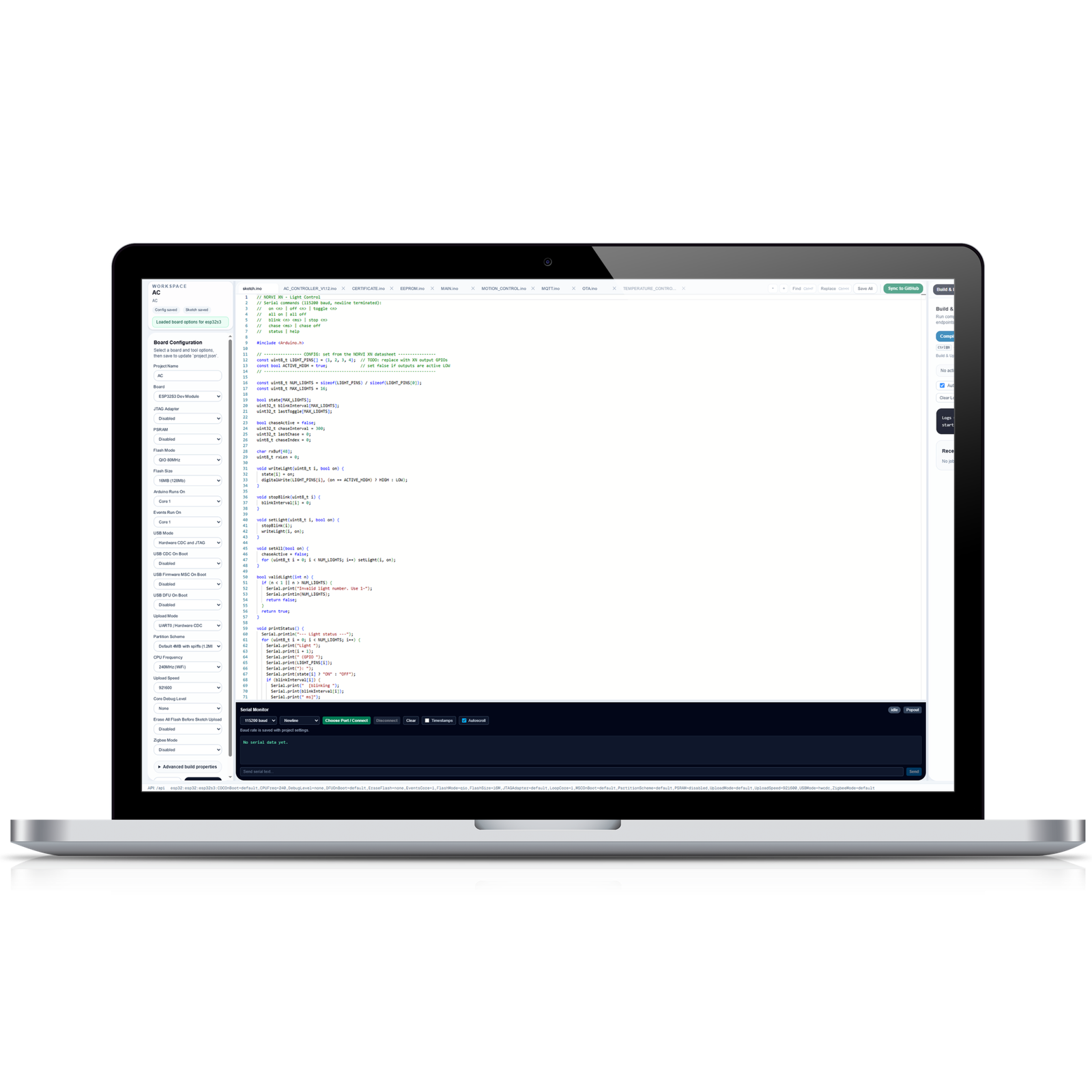

Neural Studio brings the firmware workflow into the browser.
Program, flash and debug NORVI XN from a browser-based workspace. Combined with the OTA Manager, the workflow supports cloud compile, one-click deployment and live diagnostics for field devices.
AI-assisted sketch generation from a description.
Cloud compile and OTA delivery without local setup.
Live logs and remote diagnostics through the OTA Manager.
Neural Studio
Write, build and flash ESP32 firmware from the browser without setting up a local toolchain.
Neural Deploy
Manage firmware rollouts to deployed units with verification, retries and recovery workflows.
Neural Pulse
See live serial output from a deployed unit and troubleshoot from your workstation.
Neural Insight
Publish application values as telemetry and connect to dashboards including Datacake.
Features and access are subject to the NORVI Neural launch
programme.Register for Neural access
APPLICATIONS
Built for equipment
you cannot always visit.
Industrial projects where firmware recovery and remote diagnostics make a measurable difference to site maintenance.
Remote pumps and tanks
Collect levels, alarms and operating states over cellular. Update controller logic without scheduling a trip to the pumping station.
Machine monitoring
Connect Modbus RTU / TCP equipment to monitoring workflows. Diagnose unexpected field behavior using remote serial access.
Energy and utilities
Combine current-transformer and pulse-counting expansion modules to collect metering data and send useful telemetry.
Building a pilot or integrating XN into your product?
Tell us whether you need an evaluation unit, Neural beta access, pilot quantities or system integrator programme details.
FREQUENTLY ASKED QUESTIONS
Questions from engineers.
Answers to the most useful early product questions.
Ask NORVI a technical questionCan I program XN without using NORVI Neural?
Yes. The application processor is a standard ESP32-S3 and supports Arduino and ESP-IDF development. NORVI Neural is an optional companion workflow.
What happens if my application firmware crashes?
The independent OTA Manager is designed to preserve remote serial access and support firmware recovery independently of the main application, as long as the device remains powered and connected.
Which cellular modem or SIM is supplied?
Cellular hardware options include Quectel EC25 and SIMCom A7672. The appropriate module depends on the deployment region. SIM options should be confirmed when registering interest.
Does XN work with existing NORVI X expansion modules?
Yes, NORVI XN uses the NORVI X expansion module family. Check module addressing and direct GPIO compatibility before choosing a configuration.
Can I request an evaluation unit or pilot quantity?
Yes. Select “Evaluation unit” or “Pilot quantity” in the interest form and share your project requirements so the NORVI team can discuss the next steps.
When will NORVI XN ship?
Shipment availability has not been announced here. Register your interest or contact NORVI to confirm current timelines.
EARLY INTEREST
Be part of the XN launch.
Tell our team what you are building. Register for product availability updates, discuss evaluation hardware or request early access to NORVI Neural.
Speak to NORVI
about your proposed application
Request
evaluation hardware or a pilot quantity
Ask about
Neural beta and integrator options
Prefer email? Contact support@icd.lk.
