NORVI X-BXO – DATASHEET

The NORVI X-BXO is a GPIO expansion module for the NORVI X industrial controller, providing access to 14 general-purpose input/output lines. It extends the controller’s I/O capabilities and provides flexible digital interfacing for various industrial devices and peripherals.

Product Features #

  • 14 × Input/Output (I/O) Terminals
  • Flexible Digital I/O Configuration
  • Direct Access to Controller GPIOs
  • UART, USB, I²C, and SPI Interface Access
  • Digital Sensor and Device Interfacing
  • Suitable for Custom I/O Applications
  • Expanded I/O Capability for NORVI X Controllers
  • Industrial Automation and Control Support

Applications #

  • Industrial automation and control
  • Digital sensor interfacing
  • Switch and push-button monitoring
  • Actuator and device control
  • Relay and signal control
  • Machine I/O expansion
  • Custom digital I/O applications
  • General-purpose GPIO interfacing

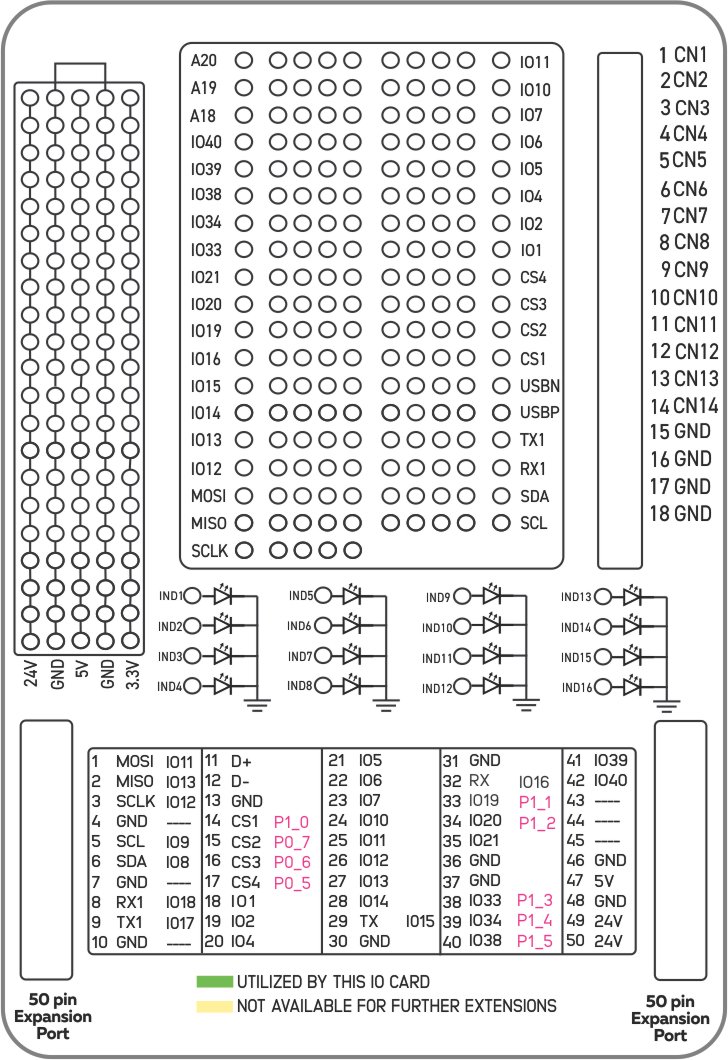

Product Block Diagram #

Main #

Range of ProductNORVI X
Product typeExpansion Module for NORVI X Series
CertificationsEN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Rated supply voltage24V DC

Complementary #

Product Part NumbersNORVI X-BKO

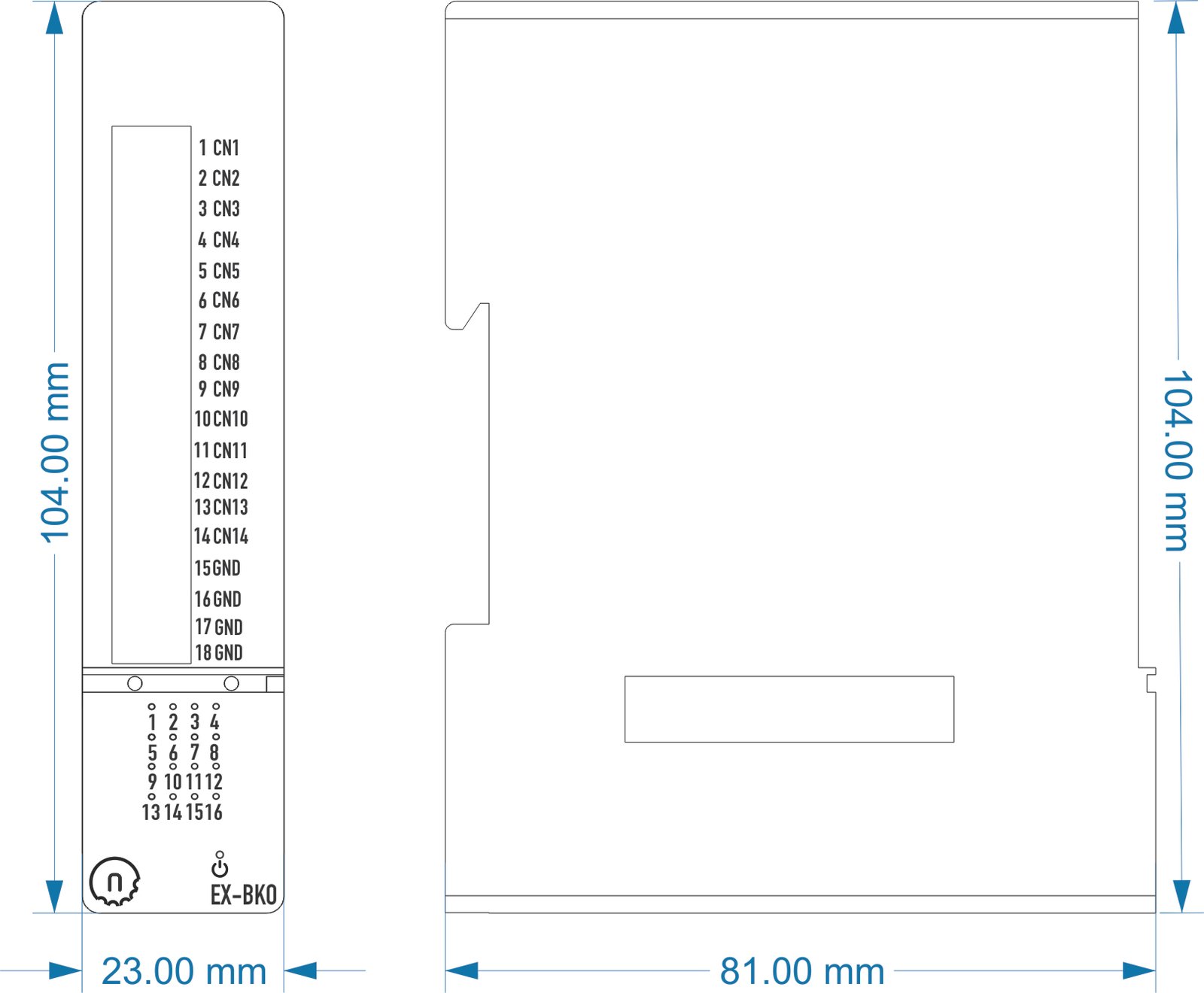

Mechanical Properties #

EnclosureNORVI X-N1
Mounting / Installation MethodDIN RAIL
Terminal TypePush-in terminal
Terminal ArrangementFront
Length81.00 mm
Height104.00 mm
Width23.00 mm

Environment #

IP degree of protectionIP20
Operating altitude0 – 2000 meters
Operating Temperature– –40 … +85° C (-40…185 °F)
Storage altitude0 – 3000 meters
Shock resistance15 gn for 11ms
Resistance to electrostatic discharge4kV on contact
8kV on air
Resistance to electromagnetic fields10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)

Electrical Characteristics #

Grid Powered Devices

Rated Supply Voltage (V)24V DC
Current Consumption (mA)Application-dependent

I/O Specifications #

The NORVI X-BKO provides access to 14 I/O terminals connected to ESP32-S3 GPIOs. These terminals can be routed through internal circuitry or sensors, depending on the application, to interface with external devices.

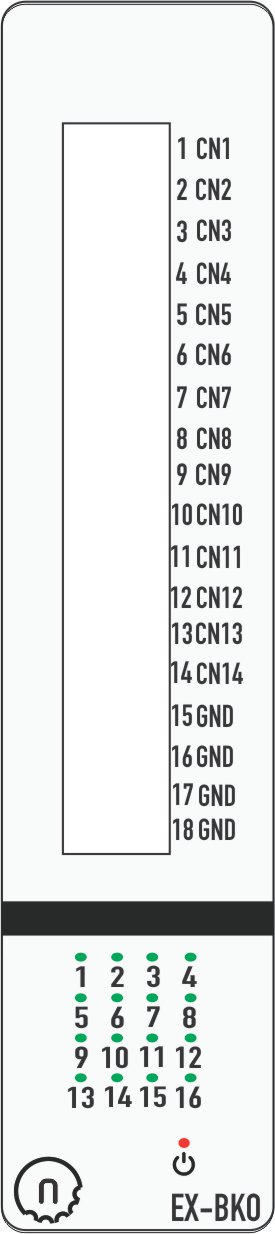

Terminal Configuration #

No.TerminalDescription
1CN1Connector Terminal 1
2CN2Connector Terminal 2
3CN3Connector Terminal 3
4CN4Connector Terminal 4
5CN5Connector Terminal 5
6CN6Connector Terminal 6
7CN7Connector Terminal 7
8CN8Connector Terminal 8
9CN9Connector Terminal 9
10CN10Connector Terminal 10
11CN11Connector Terminal 11
12CN12Connector Terminal 12
13CN13Connector Terminal 13
14CN14Connector Terminal 14
15GNDGround
16GNDGround
17GNDGround
18GNDGround

Expansion Port #

PIN INDEXPurposeGPIOSOURCE
1MOSIIO11ESP32-S3
2MISOIO13
3SCLKIO12
4GND—-
5SCLIO9
6SDAIO8
7GND—-
8RX1IO18
9TX1IO17
10GND—-
11D+—-
12D-—-
13GND—-
14CS1P1_0PCA9539
I2C Address 0x75
15CS2P0_7
16CS3P0_6
17CS4P0_5
18IO1IO1ESP32-S3
19IO2IO2
20IO4IO4
21IO5IO5
22IO6IO6
23IO7IO7
24IO10IO10
25IO11IO35
26IO12IO41
27IO13IO37
28IO14IO14
29RS485_TXIO15
30GND—-
31GND—-
32RS485_RXIO16
33P1_1P1_1PCA9539
I2C Address 0x75
34P1_2P1_2
35IO21IO21ESP32-S3
36GND—-
37GND—-
38P1_3P1_3PCA9539
I2C Address 0x75
39P1_4P1_4
40P1_5P1_5
41IO39IO39ESP32-S3
42IO40IO40
43NC—-
44NC—-
45NC—-
46GND—-
475V5V
48GNDGND
4924V24V
5024V24V
