RPI-based Industrial HMI

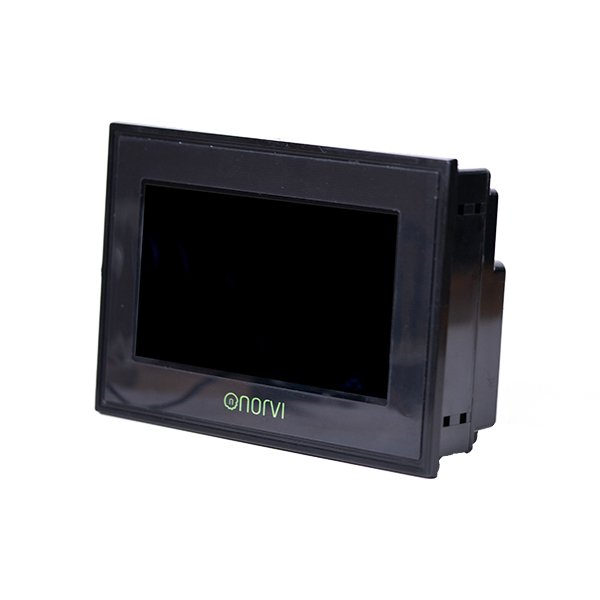

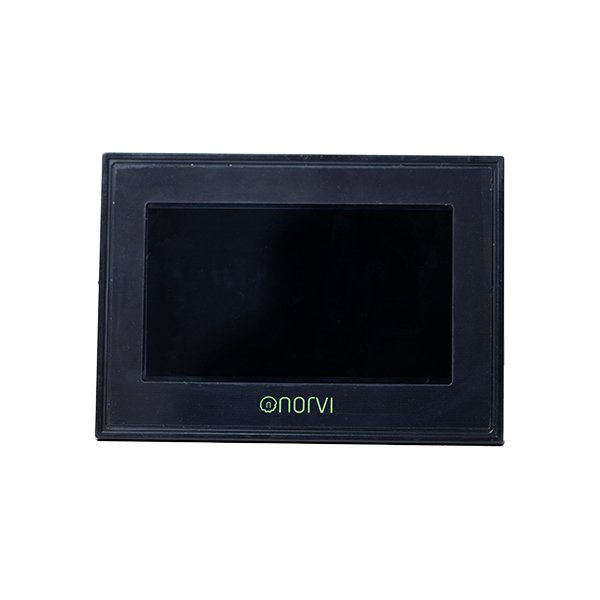

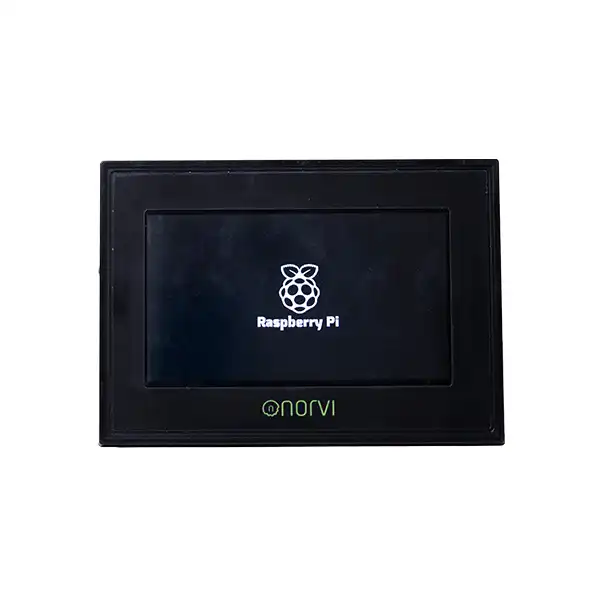

RPI-based Industrial HMI with an integrated 7-inch Touch Panel.

A Raspberry Pi CM4-based powerhouse, seamlessly integrating a 7-inch touch HMI, PLC functionality, and diverse connectivity options including Ethernet and RS-485. Ideal for IoT applications and as an industrial gateway, it’s the perfect blend of performance and versatility for any modern industrial setting.

Feature Highlights

A powerful Linux-based industrial pc, based on Raspberry PI CM4 Single board computer.
The ability to Panel Mount it and its integrated 7-inch touch panel makes it perfect for HMI Applications.
Built-in RS-485 makes it MODBUS Capable and also connects to industrial networks.

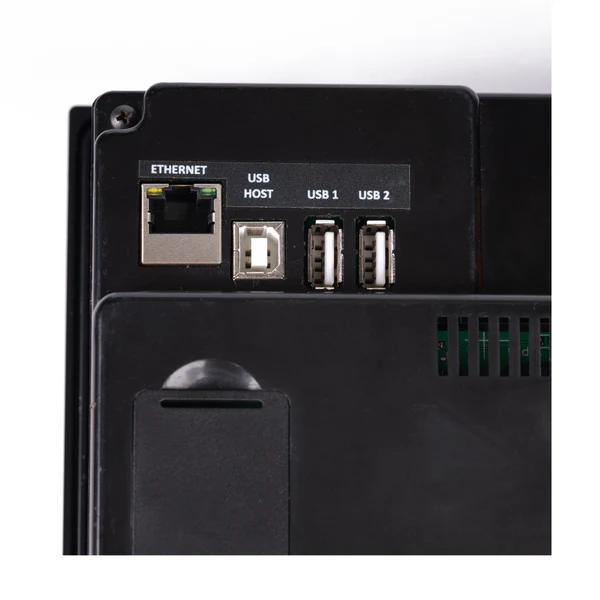

1Gig Ethernet Port for Faster Backhaul communication

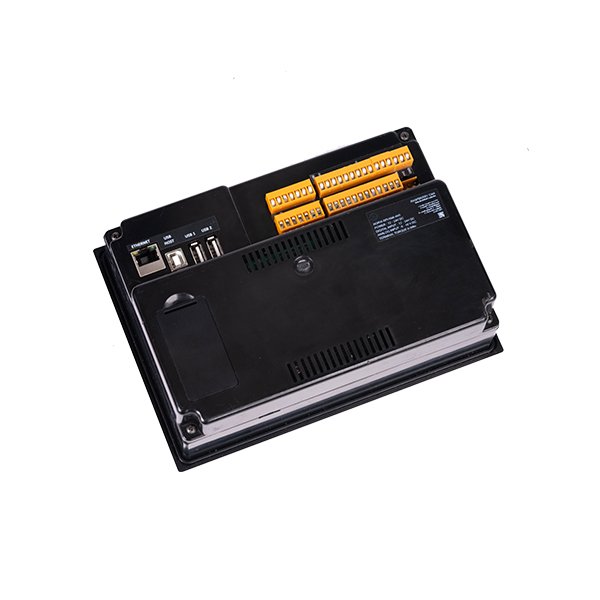

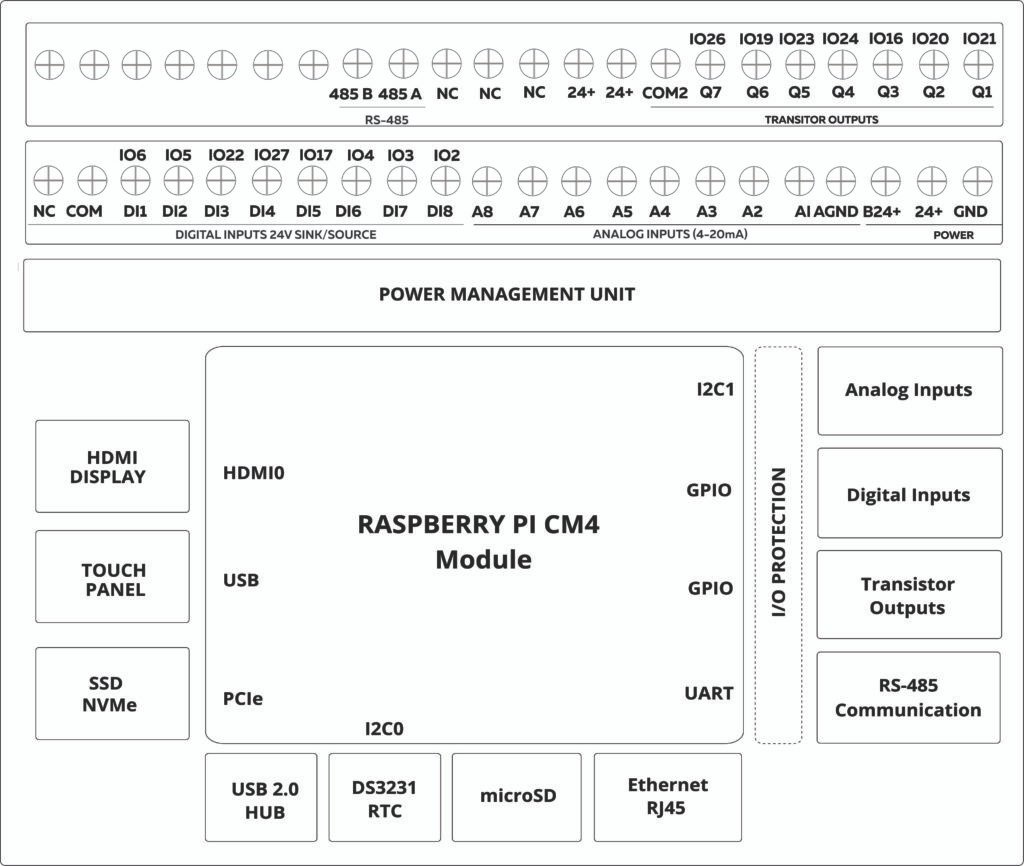

Its Built-in Digital Inputs, Analog Inputs, and Transistor Outputs, give it ability to acquire data as well as take actions

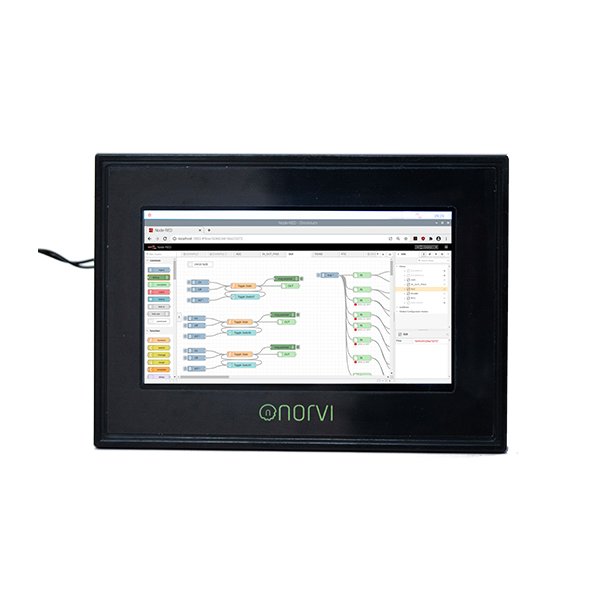

Programming: NODE RED | Python | Code Sys

Price: $287.05 - $326.70

PLC with Touch Panel

Control and monitor processes with an all-in-one PLC featuring a responsive touch interface.

HMI with Ethernet and RS-485

Seamlessly connect industrial devices via Ethernet and RS-485 for real-time data visualization.

Raspberry Pi Based HMI

Leverage Raspberry Pi performance in a rugged HMI built for industrial automation.

Raspberry Pi PLC

Program and deploy automation logic on a Raspberry Pi powered industrial PLC.

Industrial Raspberry Pi

A hardened Raspberry Pi solution designed for continuous operation in industrial environments.

Local IoT Server

Use as an on-site IoT server to process and visualize machine data locally.

Industrial Gateway

Bridge field devices with cloud platforms using Ethernet, RS-485, and IoT protocols.

Documents

1. RPI-PC-AM8-TO7 – DATASHEET

2. RPI-PC-AV8-TO7 – DATASHEET

3. USER MANUAL- RASPBERRY PI HMI

Other Resources

1. NODE-RED STARTUP GUIDE – RASPBERRY PI HMI

2. FLASHING OS FOR EMMC – RASPBERRY PI HMI

Frequently Asked Questions

What is this product?

A 7-inch touch panel industrial controller powered by Raspberry Pi CM4, designed for automation, IoT, and industrial applications.

Available models?

2GB RAM: G1, G2, G3
4GB RAM: G4, G5, G6

How to set it up?

Flash the OS to eMMC using the provided guide. Node-RED and other programming tools are supported for easy setup.

Click here for use guide

Supported connectivity?

RS-485, Ethernet, and Wi-Fi (via Raspberry Pi CM4).

Can I program/customize it?

Yes! Supports Node-RED, Python, CODESYS, and allows custom user interface creation on the 7-inch panel.

Typical uses?

PLCs, HMIs, industrial IoT solutions, local servers, and gateways.

Documentation & support?

User manuals and datasheets are on the product page. Technical support: support@norvi.io
