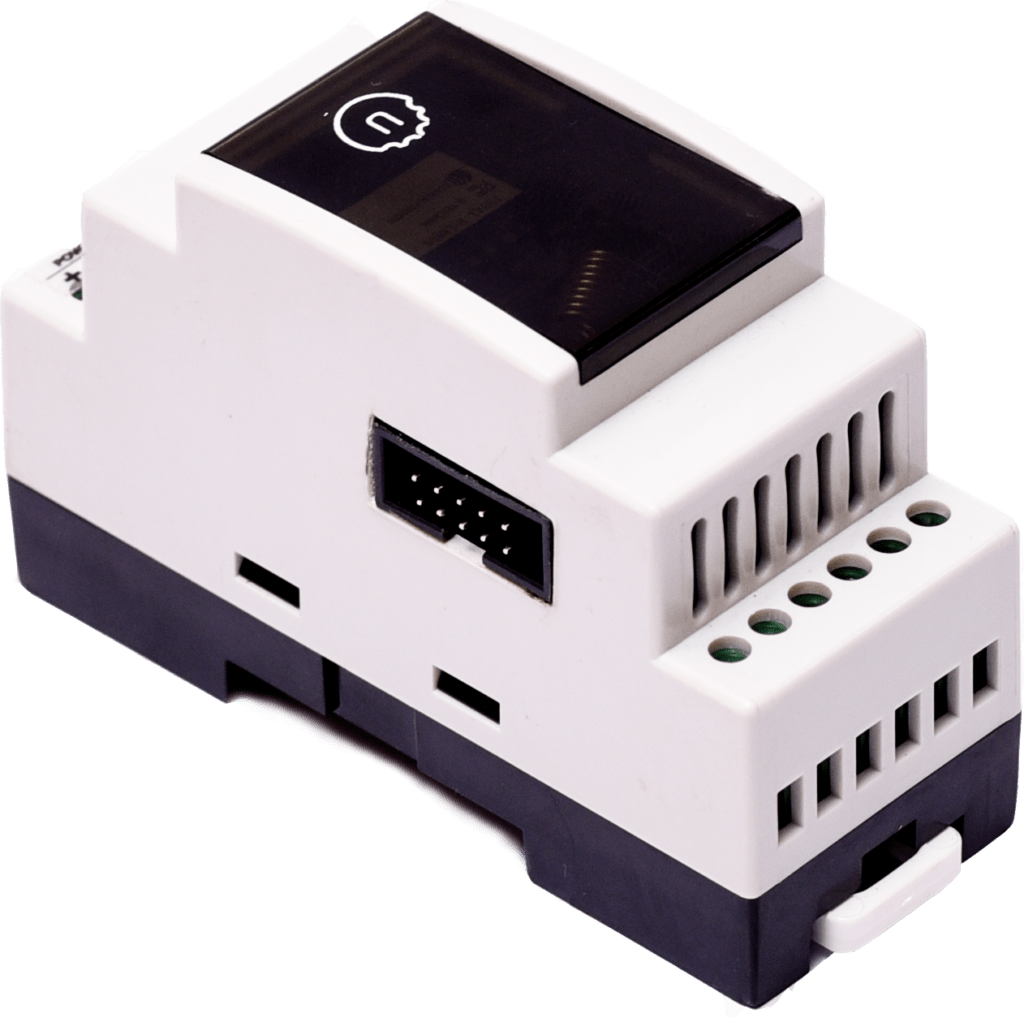

NORVI-EX-Q4 – DATASHEET

2 min read

Product Features #

  • Optically Isolated Transistor Outputs
  • Supports up to loads of 36V DC
  • 300mW Power Dissipation
  • MCP23008 Port Expander
  • Address Configurable Over DIP Switch

Expansions Supported

  • Open Collector Transistor Outputs

Main #

Range of ProductNORVI Expansion
Product TypeExpansion Module
CertificationsEN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Rated supply voltage24V DC
CommunicationI2C
Inputs and Outputs4 x Open Collector Transistor Outputs
Displays and Visual Indicators1 LED green

Complementary #

Product Unified CodeNORVI EX-Q4
Product Part Numbers NORVI EX-Q4

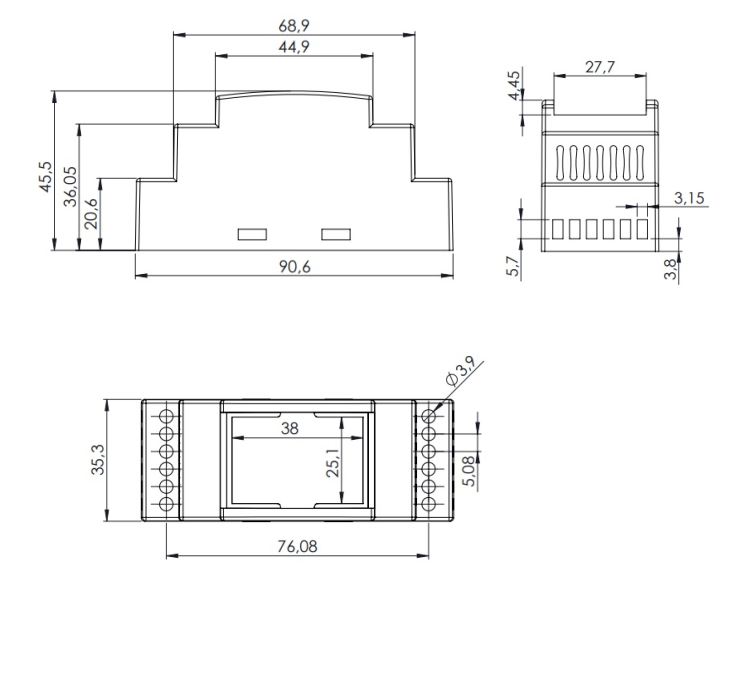

Mechanical Properties #

EnclosureNORVI 202
Mounting / Installation MethodDIN RAIL / MOUNTING TABS
Terminal TypeTop hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Terminal ArrangementTop and Bottom
Length59.00 mm
Height86.00 mm
Width35.00 mm

Environment #

IP degree of protection IP20
Operating altitude 0 – 2000 meters
Operating Temperature – –10 … +85° C (14…185 °F)
Storage altitude 0 – 3000 meters
Shock resistance 15 gn for 11ms
Resistance to electrostatic discharge 4kV on contact   8kV on air
Resistance to electromagnetic fields 10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)

Electrical Characteristics #

Grid Powered Devices #

Rated Supply Voltage (V)  24V DC
Current Consumption (mA)  400mA
Recommended Power Source  1A 24V DC

Processing #

SOC / MCU8-bit-I/O Expander with Serial Interface
Module MCP230008
Operating supply voltage2.4V to 3.6V
Resolution16bit
I2C SDAGPIO16
I2C SCLGPIO17

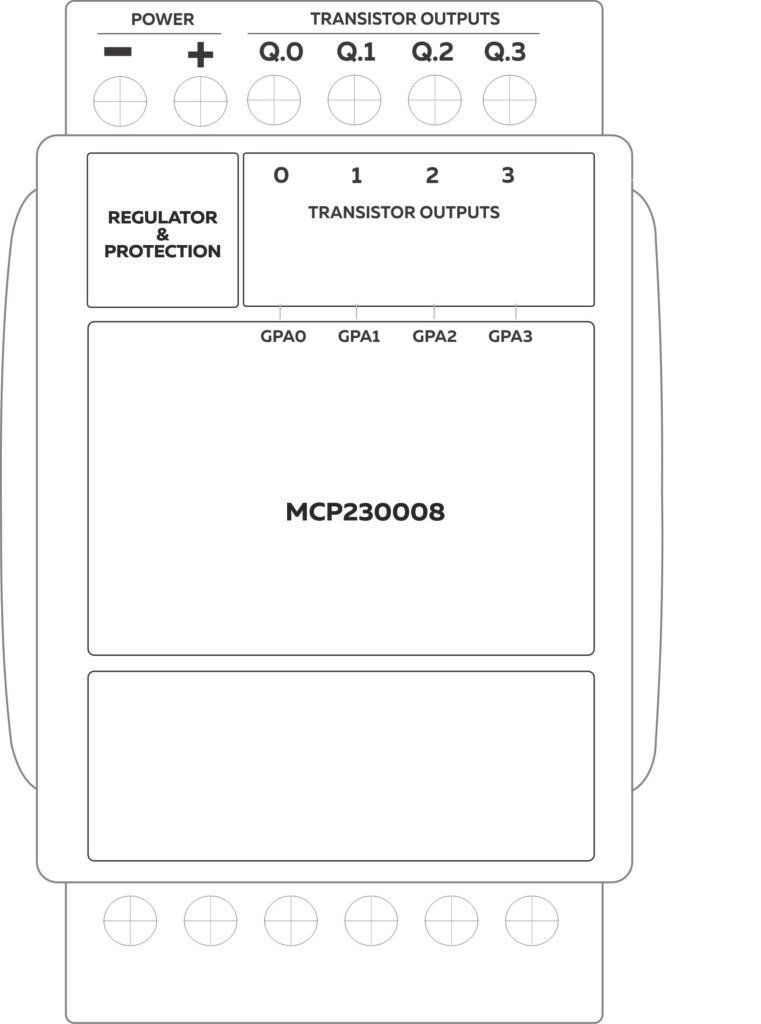

INPUTS and OUTPUTS #

Transistor Outputs #

Number of Transistor Outputs4
Transistor Output TypeOPEN COLLECTOR
Maximum Sink/Source Current (mA)100mA
Maximum Applicable Voltage36V DC
Maximum Switching Frequency1 kHz
Terminal Arrangement
T1 – GP7
T2 – GP6
T3 – GP5
T4 – GP4

I2C Address Setting #

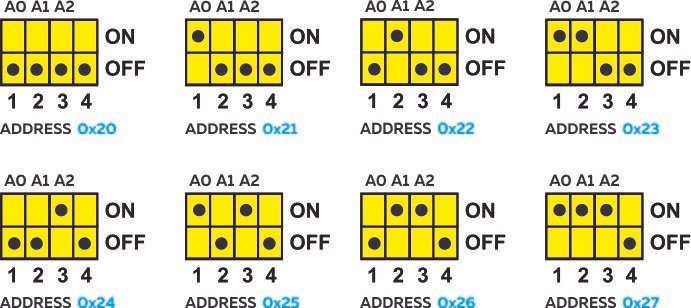

The I2C address of the expansion module can be configured by switching DIP switches at the bottom of the expansion module. The device can be configured at 8 I2C addresses using the first 3 DIP switches.

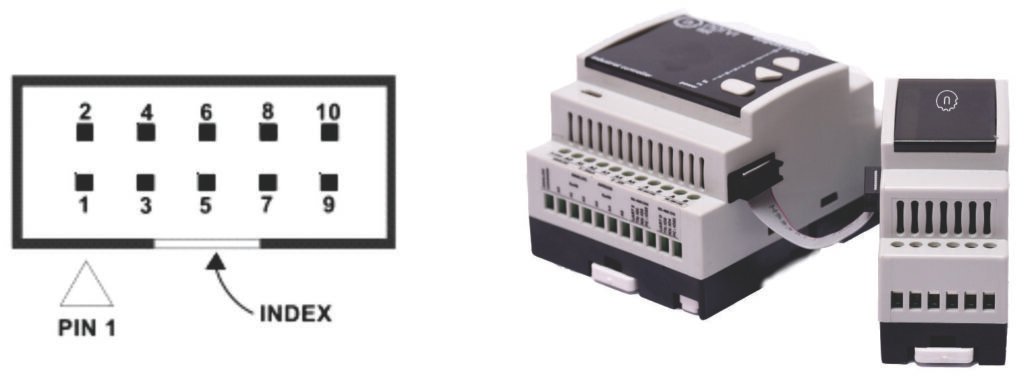

Expansion Port #

PINESP32 Connection
1TXD0
2GPIO25
3RXD0
4AUX1
5GPIO15
6NRST
7SCL2
8AUX2
9SDA2
10GND
