NORVI GSM-AE08-T-L – DATASHEET

3 min read

Product Features #

  • ESP32-WROOM32 Module
  • LTE Connection
  • Built-in 0.96 OLED Display
  • microSD Card Support
  • DS3231 RTC with Battery Backup
  • Ethernet via W5500
  • Built-in Button on the front panel
  • Digital Inputs
  • Transistor Outputs
  • DIN-Rail mount

Cellular Communication LTE1

  • Module – QUECTEL EC25
  • Brand Name – QUECTEL
  • FCC ID 2AQ9M-SIM7500
  • TAC – 86675804

Cellular Communication LTE2

  • Module – SIM7500
  • Brand Name – SIMCom
  • FCC ID 2AQ9M-SIM7500
  • TAC – 86147503

Expansions Supported

  • Analog Input
  • Digital Input
  • Transistor Output

Main #

Range of ProductNORVI GSM
Product typeProgrammable Controller
CertificationsEN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compability (EMC)
Annex III, Part B, Module C
Rated supply voltage24V DC
CommunicationWiFI / Bluetooth
LTE / EDGE  – Quectel EC25
LTE2 / EDGE – SIMCOM SIM7500
RS 485
Inputs and Outputs4 x Digital Inputs
4 x Transistor Outputs
Displays and Visual Indicators0.96 OLED Display and Indicators

Complementary #

Product Unified CodeNORVI GSM-AE08-T-L
Product Part Numbers NORVI GSM-AE08-T-L

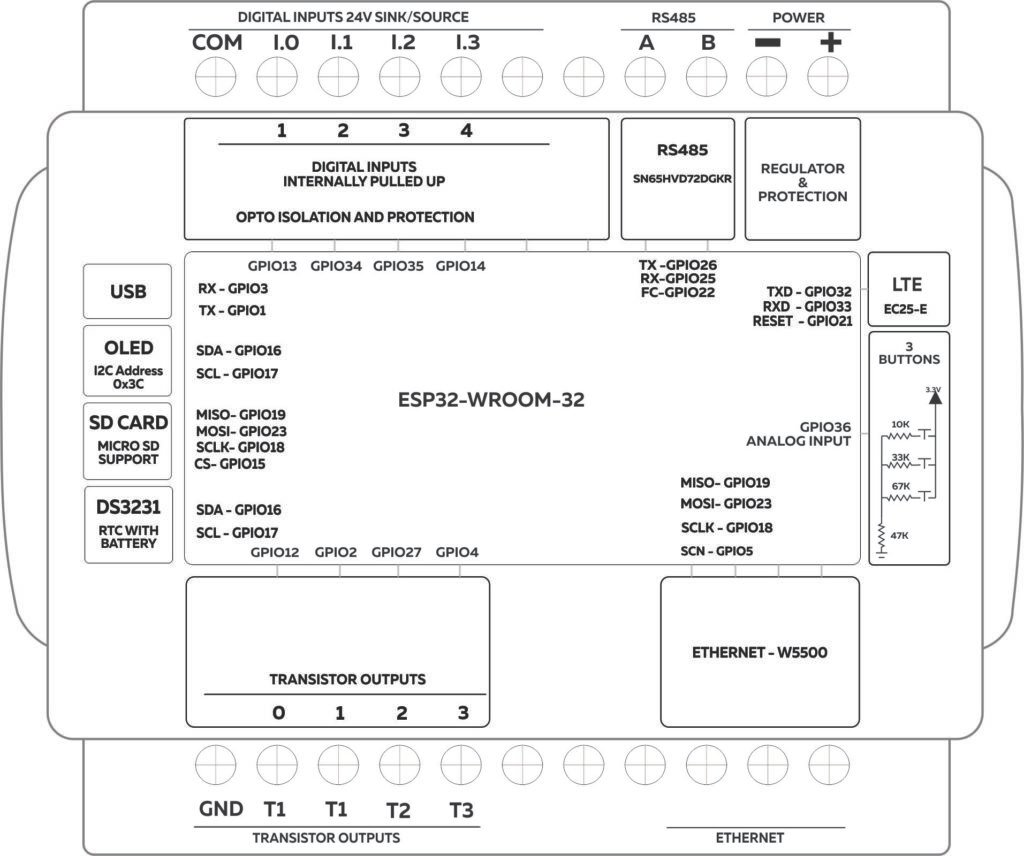

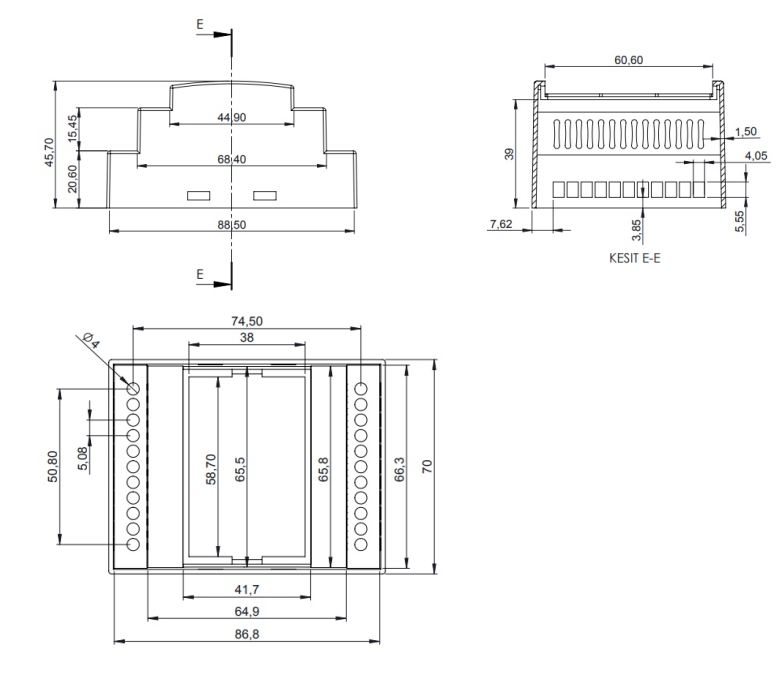

Mechanical Properties #

EnclosureNORVI 204
Mounting / Installation MethodDIN RAIL / MOUNTING TABS
Terminal TypeSCREW TERMINAL
Terminal ArrangementTop and Bottom
Length90.50 mm
Height56.60 mm
Width60.60 mm

Environment #

IP degree of protection IP20
Operating altitude 0–2000 meters
Operating Temperature – -10… +85° C (14…185 °F)
Storage altitude 0–3000 meters
Shock resistance 15 gn for 11ms
Resistance to electrostatic discharge 4 kV on contact 8 kV on air
Resistance to electromagnetic fields 10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)

Electrical Characteristics  #

Grid Powered Devices  #

Rated Supply Voltage (V)24V DC
Current Consumption (mA)400mA
Recommended Power Source1A, 24V DC

Processing #

SOC / MCUESP32-WROOM32
Flash Memory4MB
ROM448 KB
SRAM520 KB
PSRAMNOT AVAILABLE

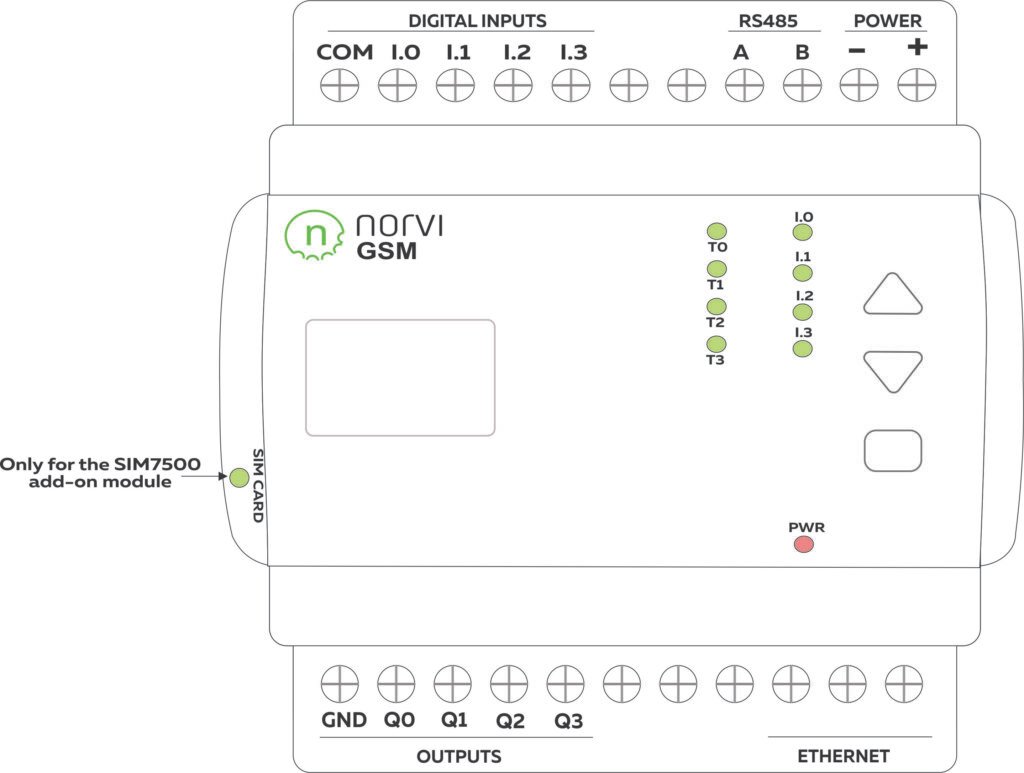

Indicator Layout #

Peripherals #

microSD Card support #

Card TypemicroSD
InterfaceSPI
SD CARD CSGPIO15
MISOGPIO19
MOSIGPIO23
SCLKGPIO18
SD DetectNOT CONNECTED

Internal RTC #

RTC ChipDS3231
Backup Battery TypeCR2032
InterfaceI2C
I2C Address0x68
SCL PinGPIO17
SDA PinGPIO16

Built-in Buttons #

Button 1 PinGPIO36 Analog Input Level 1
Button 2 PinGPIO36 Analog Input Level 2
Button 3 PinGPIO36 Analog Input Level 3

OLED Display #

Display DriverSSD1306
Display Size0.96 inch
SCL PinGPIO17
SDA PinGPIO16
RESET PinNOT CONNECTED

INPUTS and OUTPUTS #

Digital Inputs #

Number of Digital Inputs4
Digital Input PolaritySink and Source
Digital Input Maximum Voltage32V DC
Digital Input Minimum Voltage18V DC
Maximum Switching Frequency1 kHZ
Terminal ArrangementDigital Input 0 – GPIO13
Digital Input 1 – GPIO34
Digital Input 2 – GPIO35
Digital Input 3 – GPIO14

Transistor Outputs #

Number of Transistor Outputs4
Transistor Output TypeOPEN COLLECTOR
Maximum Sink/Source Current (mA)100mA
Maximum Applicable Voltage36V DC
Maximum Switching Frequency1 kHz
Terminal ArrangementTransistor Output 0 – GPIO12
Transistor Output 1 – GPIO2
Transistor Output 2 – GPIO27
Transistor Output 3 – GPIO4

Communication Channels #

RS-485 Communication #

Communication ModeHALF-DUPLEX
TransceiverMAX485
Unit Load 1/4
Flow Control / Direction Control PinGPIO22
TX PinGPIO26
RX PinGPIO25
Terminal Arrangement

Ethernet SPI – W5500 #

TransceiverW5500
Speed10BaseT/100BaseTX
Supports Auto-NegotiationYes
TX/RX Buffer SizeInternal 32 Kbytes Memory
Supported Hardwired TCP/IP ProtocolsTCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Number of Simultaneous independent sockets8
SCSnGPIO5
MISOGPIO19
MOSIGPIO23
SCLKGPIO18

LTE Communication #

Model of GSM ModemQUECTEL EC25
FCC IDXMR202008EC25AFXD
TAC86675804
RXD GPIO33
TXDGPIO32
RESET GPIO21
Model of GSM  ModemSIM7500
FCC ID2AQ9M-SIM7500
TAC86147503
RXD GPIO33
TXDGPIO32
RESET GPIO21

GPIO Map #

0outputs PWM signal at bootNRST
1TX0
2Transistor Output 1
3RX0
4Transistor Output 3
5EthernetSCSN
11
12boot fail if pulled highTransistor Output 0
13input onlyDigital Input 1
14input onlyDigital Input 4
15SD CARD CS
16SDA
17SCL
18SCLK
19MISO
21LTE RESET
22RS485-Flow Control
23MOSI
24
25RS485-RX
26RS485-TX
27Transistor Output 2
32LTE TX
33LTE RX
34input onlyDigital Input 2
35input onlyDigital Input 3
36Buttons

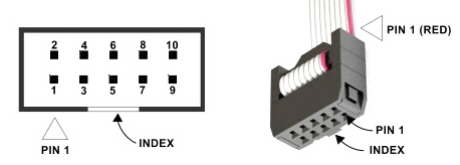

Expansion Port #

PINESP32 Connection
1NOT CONNECTED
2NOT CONNECTED
35V
4NOT CONNECTED
5BOOT GPIO0
6NOT CONNECTED
73.3V
8SCL2    GPIO17
9GND
10SDA2   GPIO16
