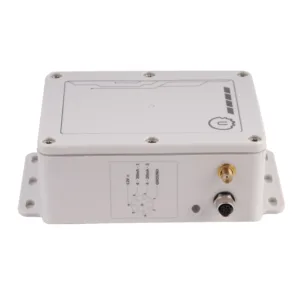

IP67 Encloser
NB-IoT / LoRaWAN & LTE-M Battery-Powered Solution
Battery-Powered Data Logger

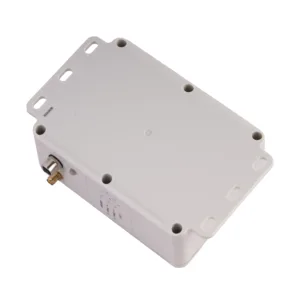

Industrial IP67 battery-powered IoT data logger with NB-IoT/LoRaWAN/LTE-M cellular connectivity. Dual 4-20mA analog inputs and RS-485 interface for long-term remote industrial monitoring. Deploy once, monitor for years.
IP67
Weatherproof Logger
38,000 mAh
Battery Powered
Connect to your own server | Firmware to connect to your own platform
White labelling: Yes | Bulk order discounts: Yes
IP67 Enclosure
38,000 mAh
Duel 4-20mA Inputs
Selectable
Selectable
5+
Years service
Applications
Water Level Data Logger
Monitor water levels in agricultural fields and irrigation systems effortlessly. NORVI’s battery-powered NB-IoT data logger provides real-time insights, helping farmers optimize water usage and reduce operational costs.
Agricultural Data Logging
Track soil, climate, and crop conditions with ease. Our NB-IoT data loggers deliver accurate, remote agricultural data to help farmers make informed decisions and improve yield efficiently.
Pressure Data Acquisition
Measure pressure in industrial pipelines, tanks, and systems without hassle. NORVI’s solution enables continuous monitoring for safer and more efficient operations.
Environmental Data Logger
Collect air, soil, and climate data in real time. NORVI’s battery-powered NB-IoT data logger simplifies environmental monitoring, making sustainability and compliance easier for farms and industries.
Professional 4-20mA IoT Gateway
Industrial-quality cellular telemetry unit built for long-term remote monitoring
Technical Specifications
Complete technical data for the EC-M12-BC-C6-C-A
| Category | Specification | Details |
|---|---|---|
Microcontroller |
STM32L072 |
Ultra-low power MCU |
Cellular Modem |
SIM7070 |
Multi-band 2G, Cat-M1, Cat-NB1 |
Network Support |
2G / Cat-M / NB-IoT |
Wide coverage, low-power IoT networks |
Optional Connectivity |
LoRaWAN |
Long-range wireless option |
Analog Inputs |
2 × 4-20 mA |
Industrial sensor interface |
Sensor Power Supply |
12V Excitation |
Integrated sensor power output |
Real-Time Clock |
DS3231 |
Precision timekeeping |
Storage |
microSD Card |
Expandable data storage |

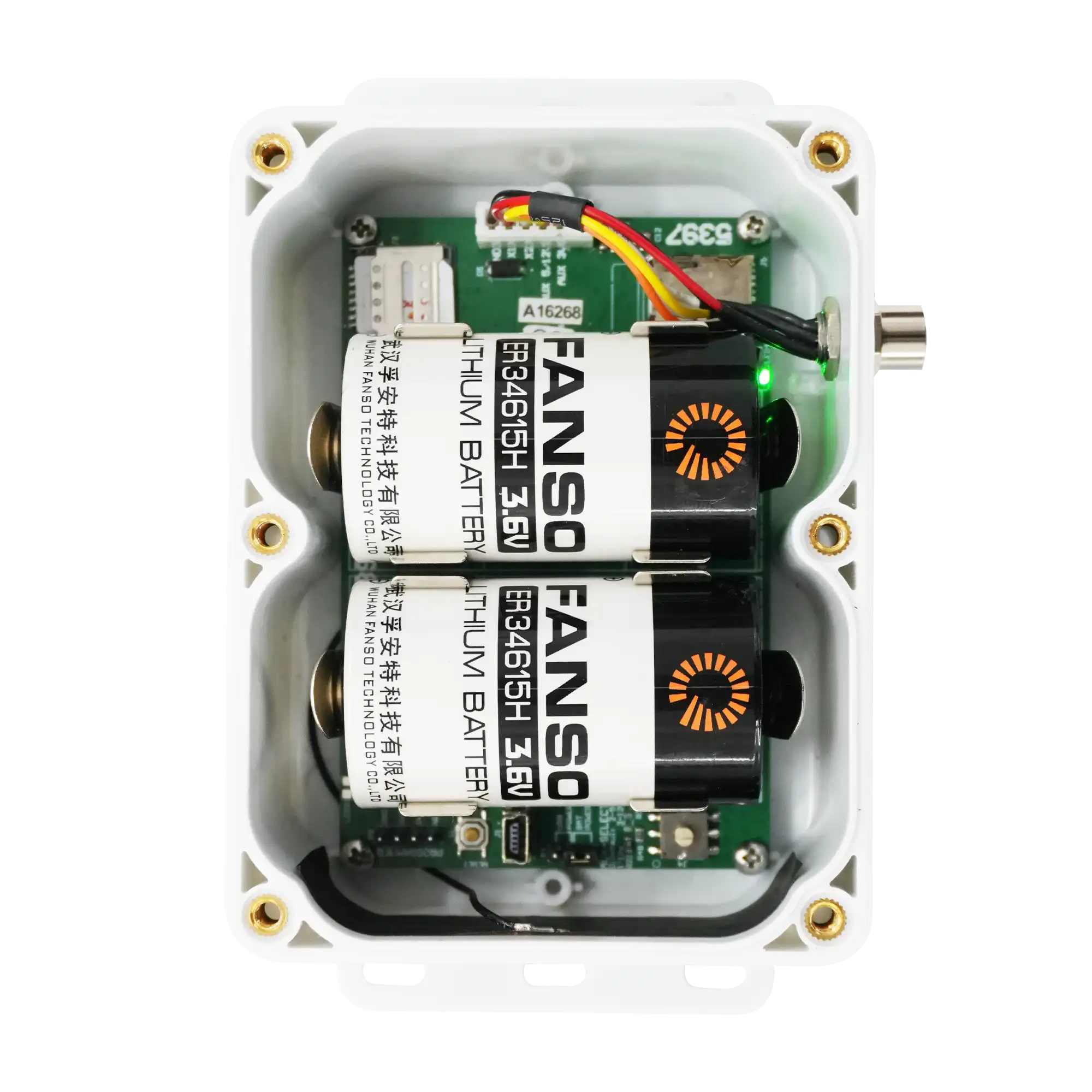

Battery Type |
2 × ER34615H |
Non-rechargeable lithium batteries |
Product Block Diagram & Pin Arragement
Case Studies
Smart Reservoir Level Monitoring System using EC-M12-BC-C6-C
The EC-M12-BC-C6-C is a battery-powered data logger specifically designed for low-power remote monitoring applications. It integrates NB-IoT / LTE-M connectivity with Modbus RTU communication, enabling reliable and efficient data collection and transmission in industrial and IoT environments.
Transmitting RS485 Modbus data over MQTT
The EC-M12-BC-C6-C-A is a compact, battery-powered data logger designed for low-power remote monitoring. Moreover, it combines NB-IoT and LTE-M connectivity with Modbus RTU, enabling reliable industrial data collection. In this guide….
EC-M12-BC-C6-C-A 4-20mA sensor low power application
This document presents a comprehensive low-power application study for the EC-M12-BC-C6-C-A, a battery-powered industrial data logger designed for remote monitoring using 4–20 mA sensors and NB-IoT / LTE-M cellular connectivity.
