Battery-Powered Data Logger

IP67 Cellular IoT Data Logger

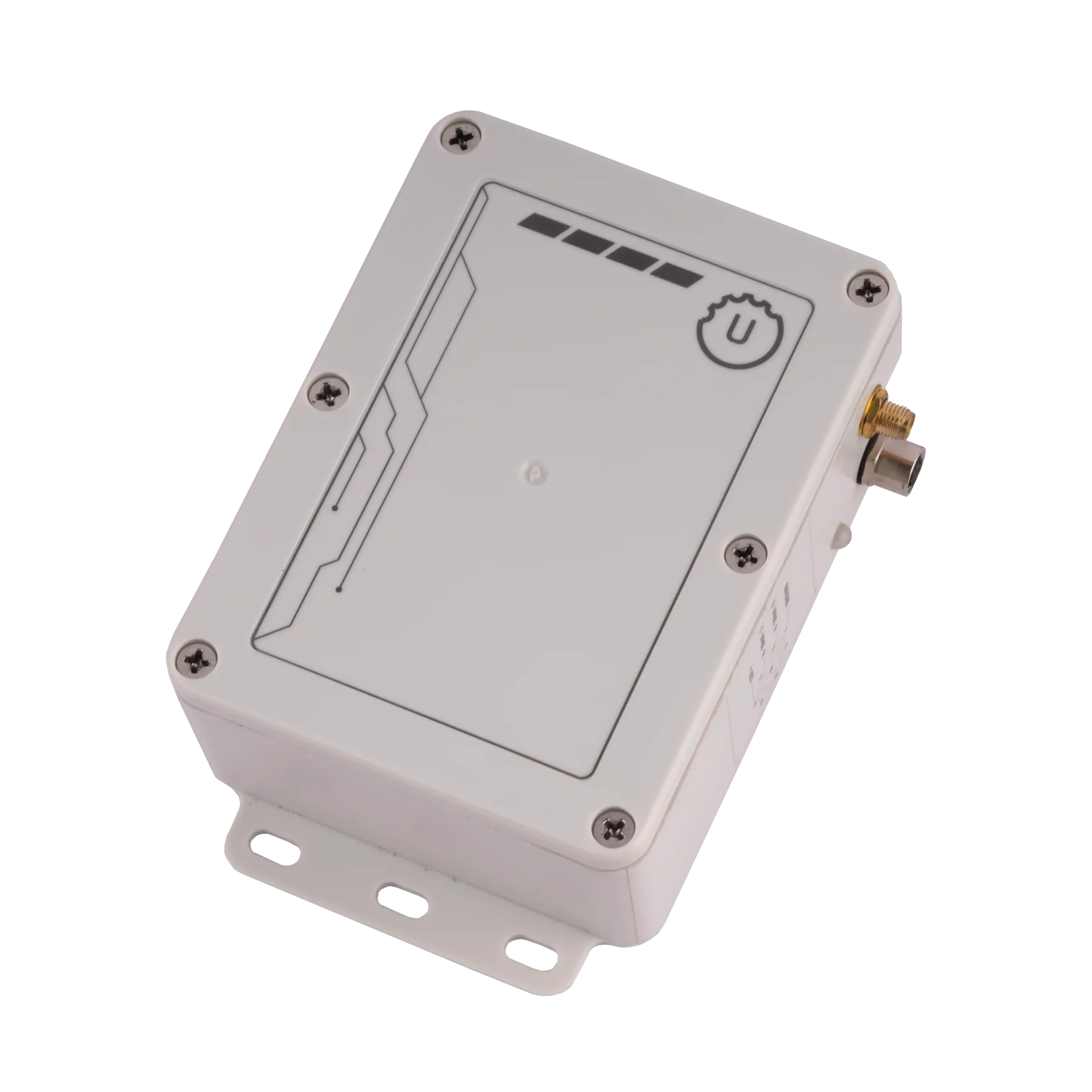

EC-M12-BC-C6-C-A: NB-IoT & LTE-M Battery-Powered Solution

Industrial IP67 battery-powered IoT data logger with NB-IoT/LTE-M cellular connectivity. Dual 4-20mA analog inputs and RS-485 interface for long-term remote industrial monitoring. Deploy once, monitor for years.

IP67

Weatherproof Logger

38Ah

Battery Powered

NB-IoT

Cellular Logger

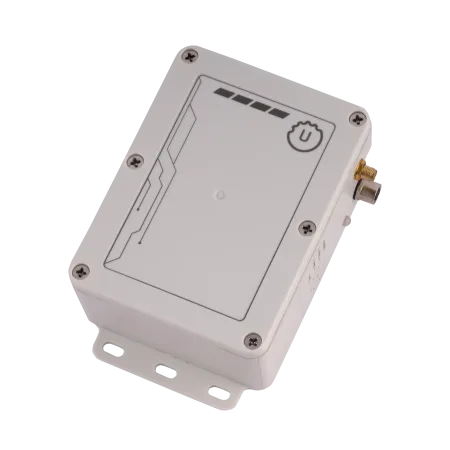

Battery-Powered IoT Data Logger - IP67 NB-IoT Cellular Data Logger

IP67 Weatherproof Logger

Industrial IP67 data logger withstands rain, dust, and extreme conditions for reliable outdoor data acquisition

Battery-Powered Logging

38,000 mAh battery-powered IoT data logger provides 3-5 years of autonomous remote data logging

NB-IoT & LTE-M Cellular

Multi-network cellular data logger with NB-IoT, LTE-M, and 2G connectivity for wide coverage

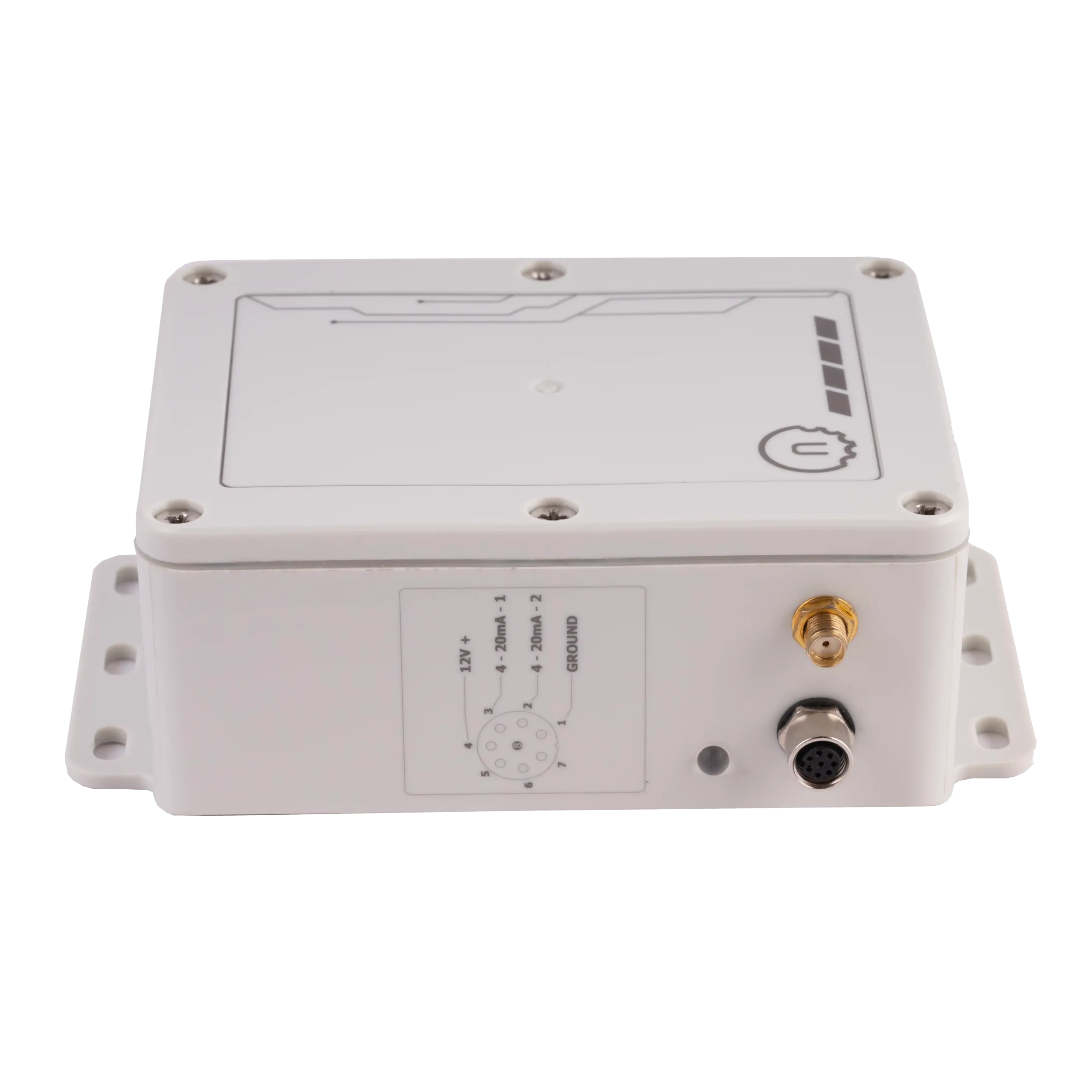

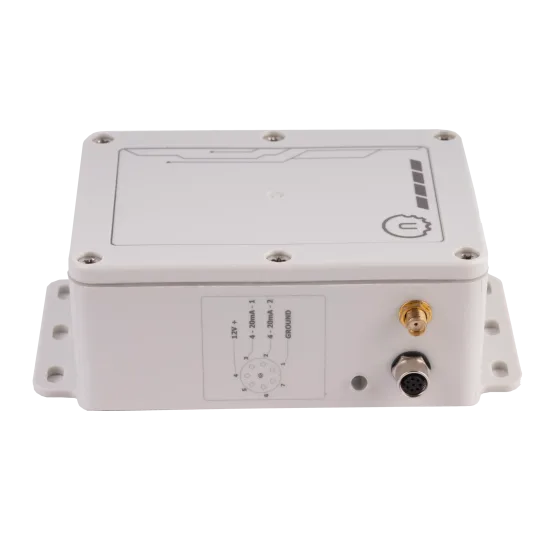

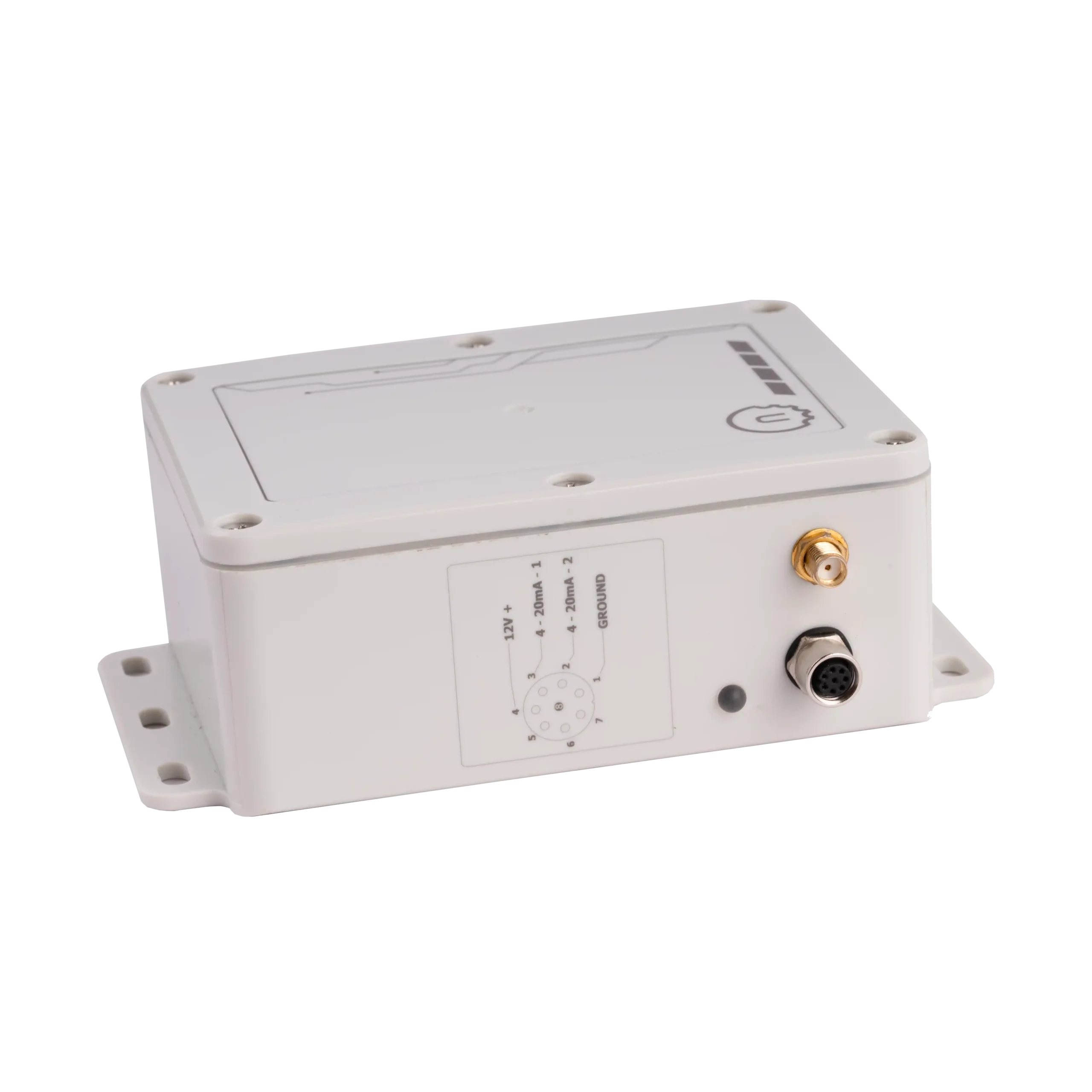

4-20mA & RS-485 Inputs

Dual 4-20mA analog inputs plus RS-485 interface for industrial sensor data acquisition and logging

Industrial IoT Data Logger

Industrial Battery-Powered IoT Data Logger

The EC-M12-BC-C6-C-A is a professional battery-powered cellular IoT data logger designed for long-term industrial data acquisition. This IP67 weatherproof data logger combines NB-IoT and LTE-M cellular connectivity with ultra-low-power design for years of autonomous remote data logging.

Our industrial data logger features dual 4-20mA analog inputs and RS-485 communication for comprehensive sensor data acquisition. Perfect for remote monitoring applications including water level data logging, pressure sensor recording, flow meter data collection, and industrial SCADA systems.

Processor

STM32L072

Cellular Modem

SIM7070

Analog Inputs

2 × 4-20mA

Real-Time Clock

DS3231

Storage

microSD Expansion

Protection Rating

IP67

Wireless Data Logging for Remote Locations

Deploy this battery-powered cellular data logger anywhere for long-term industrial monitoring. From remote pump stations to agricultural fields, from oil wellheads to environmental monitoring sites, our NB-IoT data logger ensures reliable wireless data acquisition across regions and carriers.

The integrated 4-20mA data acquisition system connects directly to industrial pressure sensors, flow meters, tank level transmitters, and other analog sensors. RS-485 communication enables Modbus RTU data logging from multiple devices. Local microSD data storage buffers sensor readings during connectivity gaps for reliable industrial data logging.

Remote Data Logging Applications

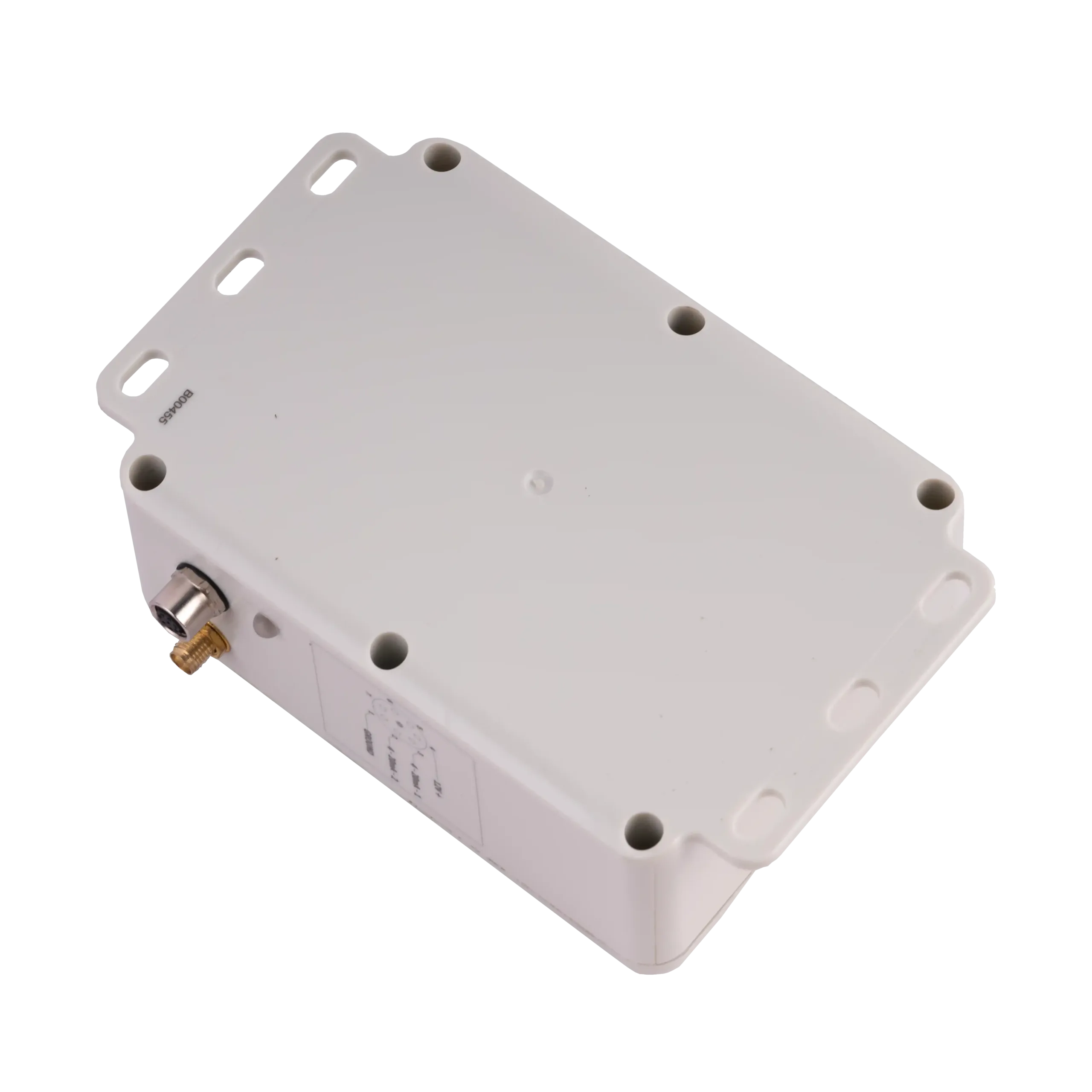

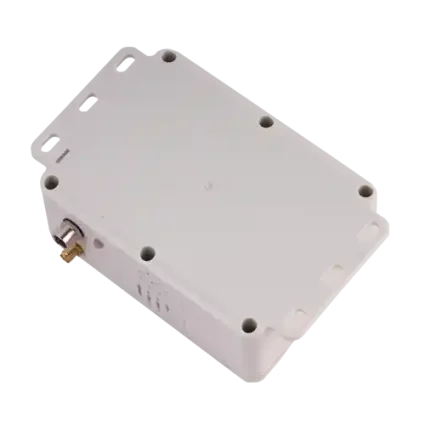

Weatherproof Data Logger Enclosure

Professional 4-20mA IoT Gateway

Industrial-quality cellular telemetry unit built for long-term remote monitoring

Technical Specifications

Complete technical data for the EC-M12-BC-C6-C-A

Category Specification Details
Microcontroller
STM32L072
Ultra-low power MCU
Cellular Modem
SIM7070
Multi-band 2G, Cat-M1, Cat-NB1
Network Support
2G / Cat-M / NB-IoT
Wide coverage, low-power IoT networks
Optional Connectivity
LoRaWAN
Long-range wireless option
Analog Inputs
2 × 4-20 mA
Industrial sensor interface
Sensor Power Supply
12V Excitation
Integrated sensor power output
Real-Time Clock
DS3231
Precision timekeeping
Storage
microSD Card
Expandable data storage
Battery Type
2 × ER34615H
Non-rechargeable lithium batteries
