Introduction to ESP32 4-20mA Input Systems
Industrial automation demands reliable communication between sensors and controllers. The ESP32 4-20mA input interface has become a cornerstone for process monitoring in manufacturing plants, water treatment facilities, and chemical processing units. This current loop standard ensures signal integrity over long distances, making it ideal for harsh industrial environments.
Modern ESP32-based controllers bridge the gap between traditional industrial sensors and IoT-enabled monitoring systems. Therefore, engineers can now collect real-time data while maintaining compatibility with existing infrastructure.
Understanding the 4-20mA Current Loop Standard
The 4-20mA current loop transmits sensor data as electrical current rather than voltage. This approach offers distinct advantages:
- Noise immunity – Current signals resist electromagnetic interference
- Long-distance transmission – Signals travel up to 1000 meters without degradation
- Simple fault detection – Values below 4mA indicate wire breaks or sensor failures
- Universal compatibility – Works with pressure, temperature, flow, and level transmitters
Why Choose ESP32 for Industrial Monitoring?
The ESP32 microcontroller combines powerful processing with built-in connectivity. However, standard ESP32 boards lack native 4-20mA interfaces. Industrial-grade controllers solve this limitation.
Key benefits include:
- Dual-core processing for multitasking
- Wi-Fi and Ethernet connectivity
- Low power consumption
- Cost-effective implementation
- OTA firmware updates
Industrial ESP32 controllers integrate analog-to-digital converters calibrated specifically for ESP32 4-20mA input applications. This integration eliminates external signal conditioning circuits.

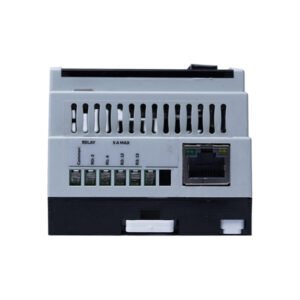

Featured Solution: NORVI ENET Industrial Controller

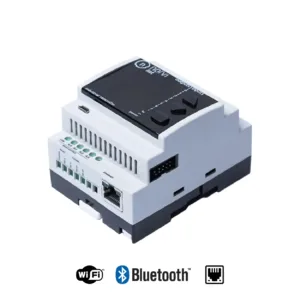

The NORVI ENET ESP32 Ethernet Controller provides a robust platform for industrial automation. This controller features:
| Specification | Details |
|---|---|
Processor |
ESP32 dual-core |
Connectivity |
Ethernet + Wi-Fi |
Operating Temp |
-20°C to 70°C |
Power Supply |
12-24V DC |
Expansion |
Modular I/O support |
For detailed technical specifications and setup guides, please refer to the product documentation available in our Documentation section.
The controller operates in harsh environments while maintaining stable communication. In addition, its modular design allows system scaling without hardware redesign.
Expanding Analog Inputs with NORVI Modules

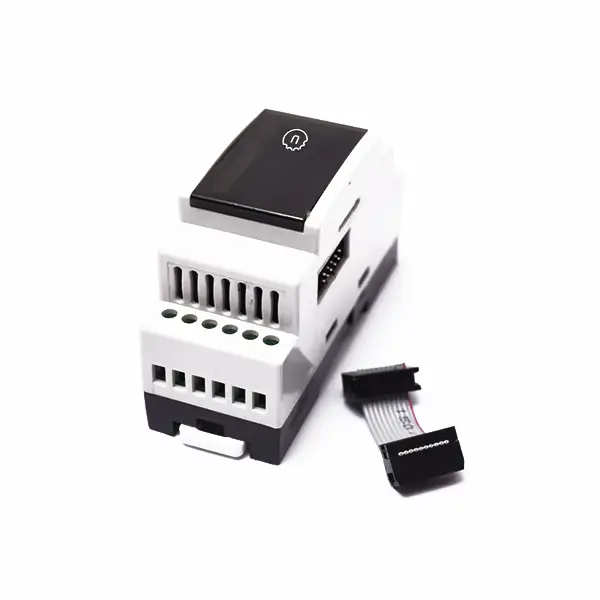

Process monitoring often requires multiple sensor inputs. The NORVI Expansion Modules extend analog input capacity seamlessly.
Available Expansion Options
The analog expansion modules offer:
- 4-channel 4-20mA inputs – Monitor multiple transmitters simultaneously
- Isolated inputs – Prevent ground loop interference
- DIN rail mounting – Standard industrial installation
- Plug-and-play integration – No complex wiring required

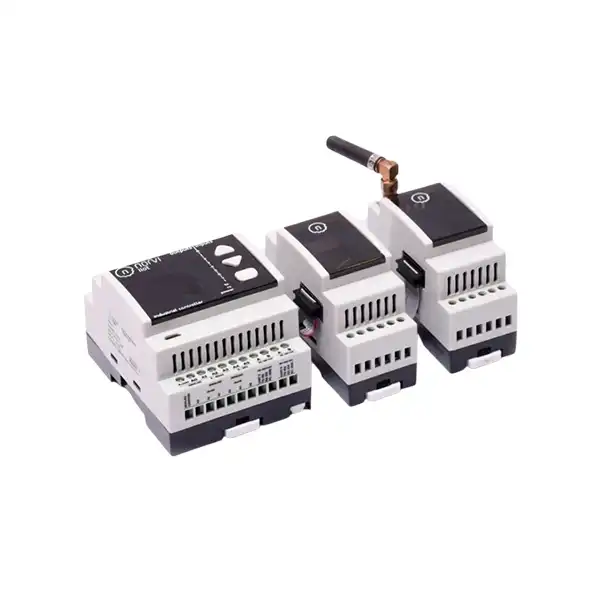

These modules connect directly to the NORVI ENET controller. Therefore, systems can grow from 4 to 20+ analog inputs as monitoring needs expand.
Practical Implementation: Temperature Monitoring System
Consider a chemical reactor requiring precise temperature control. The implementation follows these steps:
Hardware setup:
- Connect RTD temperature transmitters (4-20mA output) to analog inputs
- Wire transmitters to NORVI analog expansion module
- Connect expansion module to ENET controller
- Configure Ethernet or Wi-Fi connectivity
Software configuration: The ESP32 reads analog values and converts them to engineering units. Programming involves:
- Reading ADC values from ESP32 4-20mA input channels
- Converting current to temperature using transmitter calibration
- Implementing alarm thresholds
- Sending data to SCADA or cloud platforms
The system updates readings every second, providing real-time visibility into reactor conditions.
Advanced Features for Process Control
Remote Monitoring and Alerts
ESP32 controllers transmit data via MQTT, HTTP, or Modbus TCP protocols. Plant managers access dashboards from anywhere. Furthermore, the system sends immediate alerts when parameters exceed safe ranges.
Data Logging and Analytics
The controller stores historical data locally or in cloud databases. Engineers analyze trends to:
- Predict equipment failures
- Optimize process efficiency
- Verify regulatory compliance
- Reduce downtime costs
Integration with Existing Systems
NORVI controllers communicate with PLCs, HMIs, and enterprise software. This compatibility protects existing investments while adding modern monitoring capabilities.
Best Practices for 4-20mA Implementation
Signal integrity considerations:
- Use shielded twisted-pair cables for long runs
- Maintain proper grounding to prevent noise
- Verify power supply stability (24V DC typical)
- Test transmitter calibration regularly
System design tips:
- Document loop resistance (max 600-800Ω typical)
- Plan for future expansion with modular architecture
- Implement redundant connectivity paths
- Include manual override capabilities for safety
Real-World Applications
Water treatment plants use ESP32 4-20mA input systems to monitor pH, turbidity, and flow rates. Operators respond quickly to water quality changes.
Manufacturing facilities track pressure and temperature across production lines. Automated alerts prevent equipment damage and product defects.
Oil and gas operations monitor tank levels and pipeline pressures remotely. This reduces manual inspection costs while improving safety.
Conclusion
Industrial process monitoring with ESP32 4-20mA input technology delivers reliable, cost-effective automation. The NORVI ENET controller and expansion modules provide a scalable solution for diverse applications.
Engineers gain real-time visibility, predictive maintenance capabilities, and seamless integration with existing infrastructure. As Industry 4.0 adoption accelerates, ESP32-based systems position facilities for competitive advantage.
Start small with a single controller monitoring critical parameters. Expand systematically as benefits become evident. The investment pays dividends through reduced downtime, improved efficiency, and enhanced safety.
