NORVI AGENT 1-BT05-ES-L – USER GUIDE

Programming  #

The NORVI AGENT 1-BT05-ES-L has a mini USB port for serial connection with the SoC for programming. Any ESP32-supported programming IDE can be used to program the controller. Follow this guide to programming NORVI ESP32-based controllers with the Arduino IDE.

SoC: ESP32-WROVER-B
Programming Port: USB UART

Digital Inputs  #

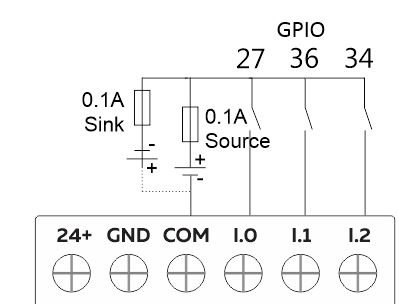

Wiring Digital Inputs #

The digital inputs of NORVI AGENT 1-BT05-ES-L can be configured as both sink and source connections. The inverse of the digital input polarity should be supplied to the common terminal.

Programming Digital Inputs  #

Reading the relevant GPIO of the ESP32 gives the value of the digital input. When the inputs are in the OFF state, the GPIO goes HIGH, and when the input is in the ON state, the GPIO goes LOW. Refer to the GPIO allocation table in the datasheet for the digital input GPIO.

#define INPUT1 27
void setup() {
   Serial.begin(115200);
   Serial.println("Device Starting");
   pinMode(INPUT1, INPUT);
}

void loop() {
   Serial.print(digitalRead(INPUT1));
   Serial.println("");
   delay(500);
}

0 – 10V Analog Input #

Wiring Analog Inputs  #

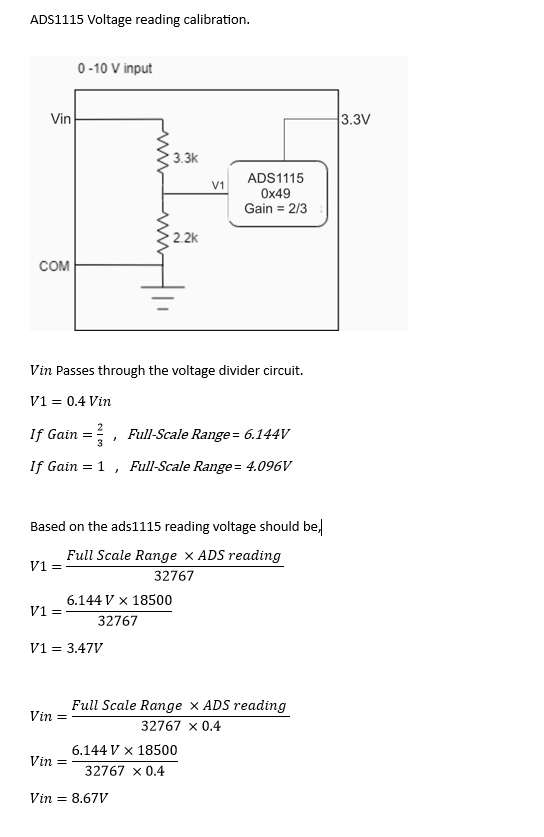

Reading Analog Input  #

Reading the relevant I2C address of the ADC gives the value of the analog input.

Programming Analog Inputs  #

#include <Adafruit_ADS1X15.h>
#include <Wire.h>
Adafruit_ADS1115 ads1;

void setup() {
   Serial.begin(115200);
   Serial.println("Device Starting");
   Wire.begin(21,22);
   ads1.begin(0x48);
   ads1.setGain(GAIN_ONE);
}

void loop() {
  Serial.print("Analog 0 ");
  Serial.println(ads1.readADC_SingleEnded(0));
  delay(10);
  Serial.print("Analog 1 ");
  Serial.println(ads1.readADC_SingleEnded(1));
  delay(10);
  Serial.print("Analog 2 ");
  Serial.println(ads1.readADC_SingleEnded(2));
  delay(10);
  Serial.println("");
  delay(500);
}

Relay Output #

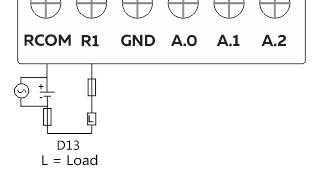

Wiring Relay Outputs #

Programming Relay Outputs  #

Reading the relevant GPIO of the ESP32 gives the value of the relay output. Refer to the GPIO allocation table in the datasheet for the relay output GPIO.

#define OUTPUT1 13

void setup() {
   Serial.begin(115200);
   Serial.println("Device Starting");
   pinMode(OUTPUT1 , OUTPUT);
}

void loop() {
   digitalWrite(OUTPUT1, HIGH);
   delay(500);
   digitalWrite(OUTPUT1, LOW);
   delay(500);
   Serial.println("");
   delay(500);
}

Built-in Buttons #

Programming Buttons #

#include <Adafruit_NeoPixel.h>
#define BUTTON_PIN   35    //Digital IO pin connected to the button. This will be
#define PIXEL_PIN    25    // Digital IO pin connected to the NeoPixels.
#define PIXEL_COUNT 1

Adafruit_NeoPixel strip = Adafruit_NeoPixel(PIXEL_COUNT, PIXEL_PIN, NEO_GRB + NEO_KHZ800);
bool oldState = HIGH;
int showType = 0;

void setup() {
  Serial.begin(115200);
  pinMode(BUTTON_PIN, INPUT_PULLUP);
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
  Serial.println("RS-485 TEST");
}

void loop() {
  bool newState = digitalRead(BUTTON_PIN);
  if (newState == LOW && oldState == HIGH) {
    delay(20);
    newState = digitalRead(BUTTON_PIN);
    if (newState == LOW) {
      showType++;
      if (showType > 9)
      showType = 0;
      startShow(showType);
    }
  }
  oldState = newState;
}

void startShow(int i) {
  switch (i) {
    case 0: colorWipe(strip.Color(0, 0, 0), 50);   break;
    case 1: colorWipe(strip.Color(255, 0, 0), 50); break;
    case 2: colorWipe(strip.Color(0, 255, 0), 50); break;
    case 3: colorWipe(strip.Color(0, 0, 255), 50); break;
    case 4: theaterChase(strip.Color(127, 127, 127), 50); break;
    case 5: theaterChase(strip.Color(127, 0, 0), 50); break;
    case 6: theaterChase(strip.Color(0, 0, 127), 50); break;
    case 7: rainbow(20); break;
    case 8: rainbowCycle(20); break;
    case 9: theaterChaseRainbow(50); break;
  }
}

LoRa Transceiver Module #

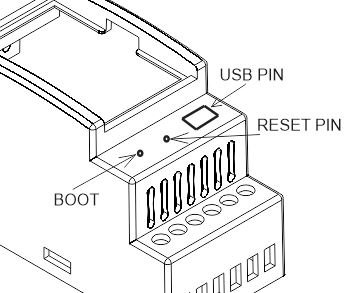

USB and Reset #
